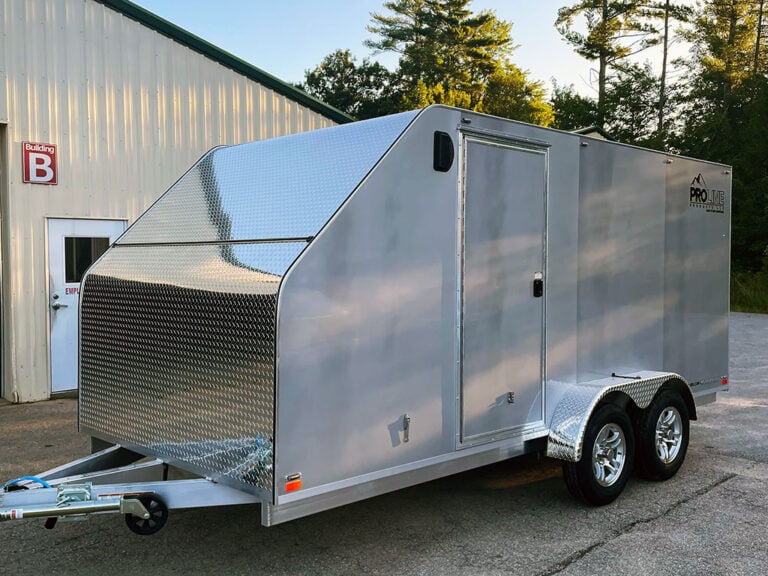

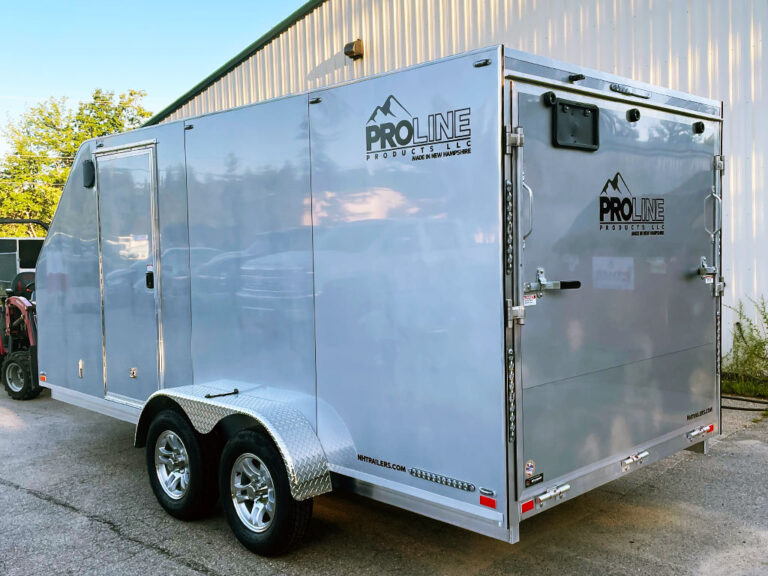

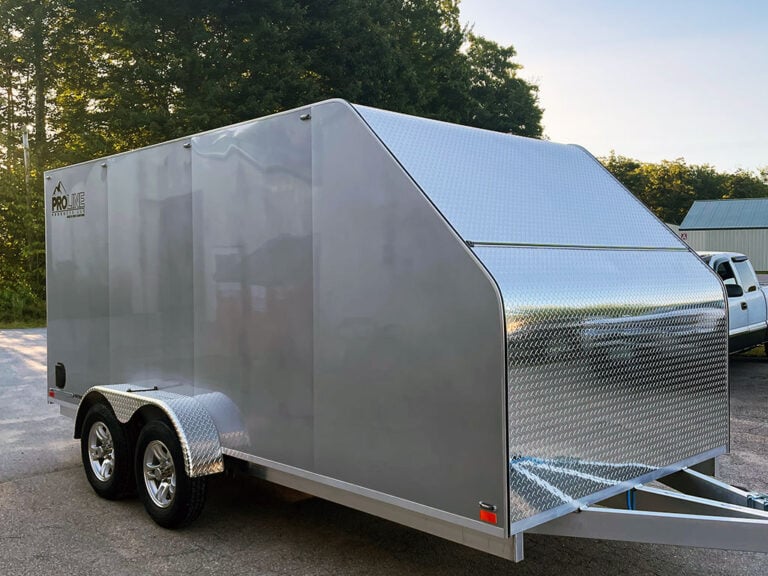

Finally an enclosed trailer to haul your ATVs! The IS7 Series aluminum trailer has a 7′ wide box for easy towing and big 15″ radial tires on the outside of the trailer for added safety! Add an optional beavertail to increase the clearance height for the ramp door as well!
A rear ramp door with spring assist is standard so it’s easy to get your ATVs in and out. Other standard features include Dexter Torflex axle, multiple LED interior lights, and LED stop-turn-tail, sidemarker, and fender lights. This is the perfect lightweight aluminum trailer for your ATVs and extremely rugged built on a 2″x 5″ tubular main frame. As always our wall and roof cross-members are on 16″ center and built for the New England winters!. This is an incredibly rugged enclosed aluminum trailer and one of the best towing trailers available!
| Model | IS 716 | IS 716T | IS 722T |
|---|---|---|---|
| Factory Direct Price 6'1" Max Int Ht | $7,095 | $9,095 | $11,095 |
| Factory Direct Price 6'6" Max Int Ht | $7,335 | $9,335 | $11,425 |
| Interior Length | 15' 10" | 15'10" | 21 '10" |
| Interior Width | 81" | ||
| Interior Height | 5'6", or 6'1" Options, Net Height Is Less | ||
| Overall Length | 20' | 20' | 26' |
| Overall Width | 102" | ||
| Overall Height | See Link | ||
| Deck Height | 23" | ||
| Top of Ball / Ball Size | 20" / 2" | ||
| Curb Weight* | 1350# | 1850# | 2150# |
| GVWR | 2990# | 6000# | 6000# |
| Note | Other sizes available. Call for details. | ||
| Model | ALL MODELS |
|---|---|
| Frame | All Aluminum Tubular - 2"x5" Main Frame |
| Axles | Dexter Torflex w/ EZ Lube Hubs |
| Brakes | Option(IS 712, IS 716) / 10" Electric Self Adjusting on Both Axles(IS 716T, IS 722T Tandem) |
| Tires/Wheels | ST205/75R15 LRC Tires on Galvanized Wheel |
| Exterior Skin | .030 Painted Aluminum Sheets - Screwless Full Stoneguard Front |
| Wall/Roof Structure | All Aluminum Tubular - 16" On Center |
| Roof Skin | Seamless Mill Finish Aluminum |
| Flooring | 3/4" GP DryMax High Performance Floor |
| Exterior Lights | LED Stop-Turn-Tail, LED Side Marker, LED Clearance, LED Plate Light |
| Interior Lights | 2(IS 712) / 3(IS 716, IS 716T) / 4(IS 722T Tandem) |
| Interior | 12" Kickboard on Interior Walls |
| Tiedowns | 2 Quick-Adjust Floor Rails |
| Trailer Doors | Rear Ramp Door w/ Spring Assist 32" x 68" Side Access Door w/ RV Lock |
| Jackstand | Swivel Jackstand w/ Wheel |
| Ramp Door | 76" Wide |
| Ramp Door Hinges | Aluminum w/ Grease Fittings |
| Ventilation | CHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2) |
| 12V Power | 4 Way Flat(IS 712, IS 716) / 7 Way Round Plug(IS 716T, IS 722T Tandem) |
Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides. |
||
 |  | ![trailer color](https://nhtrailers.com/wp-content/uploads/2023/06/TrailerColor-Silver.jpg") |
 |  |  |
 |  |  |
 |  | |
SKU-STS15
Add to cart
SKU-TWM
Add to cart
SKU-110V-Simple
Select options This product has multiple variants. The options may be chosen on the product page
SKU-QADR
Add to cart
SKU-LED-IntAdd
Add to cart
SKU-STP-SD
Add to cart
SKU-LED-Ghost-
Select options This product has multiple variants. The options may be chosen on the product page
SKU-LED-BULit
Add to cart
SKU-PURV-RVCover
Add to cart
SKU-LK-Pucklock
Select options This product has multiple variants. The options may be chosen on the product page
Our aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.
A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.
Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.
Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
To Get A Custom Trailer Quote Today!
