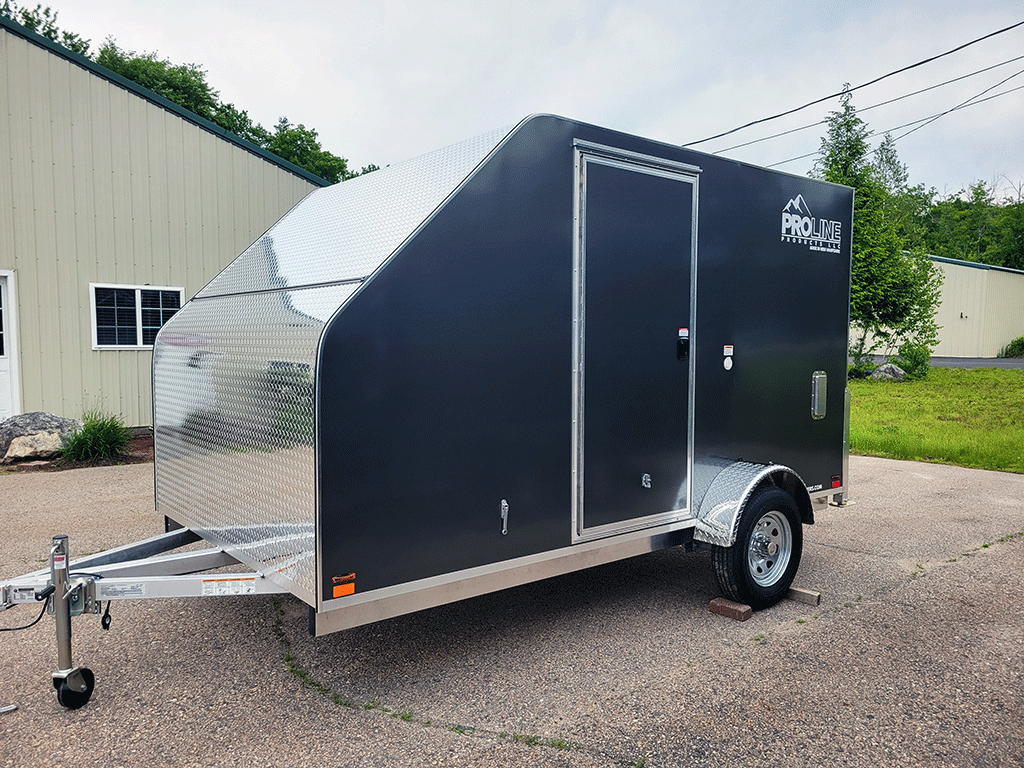

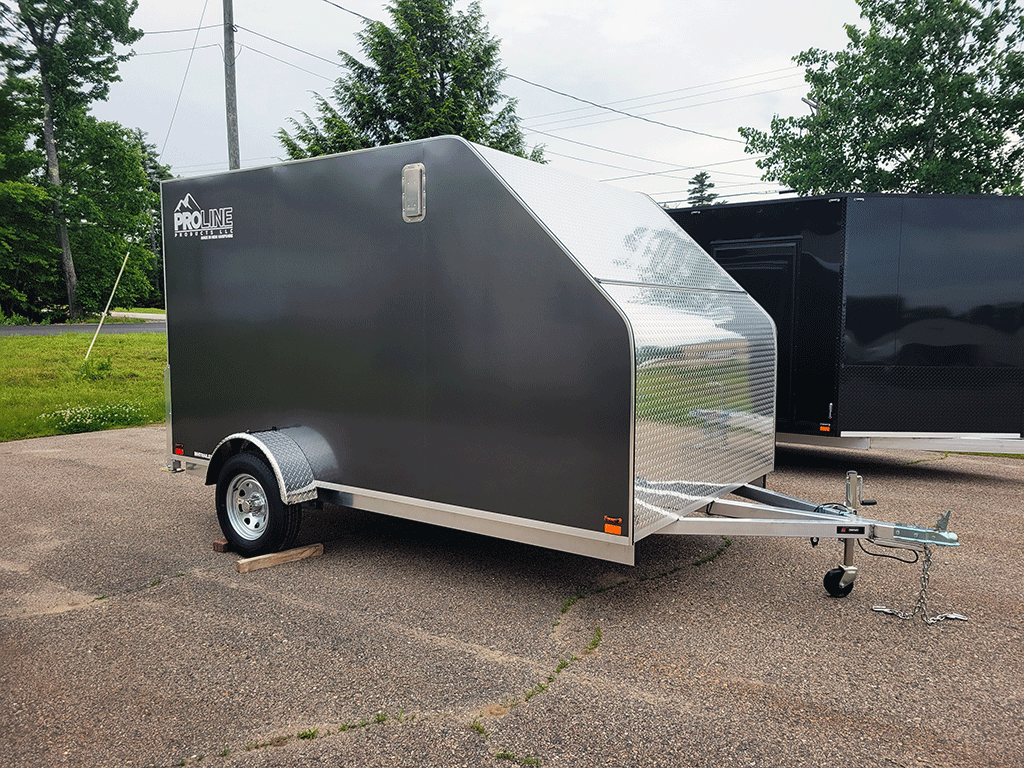

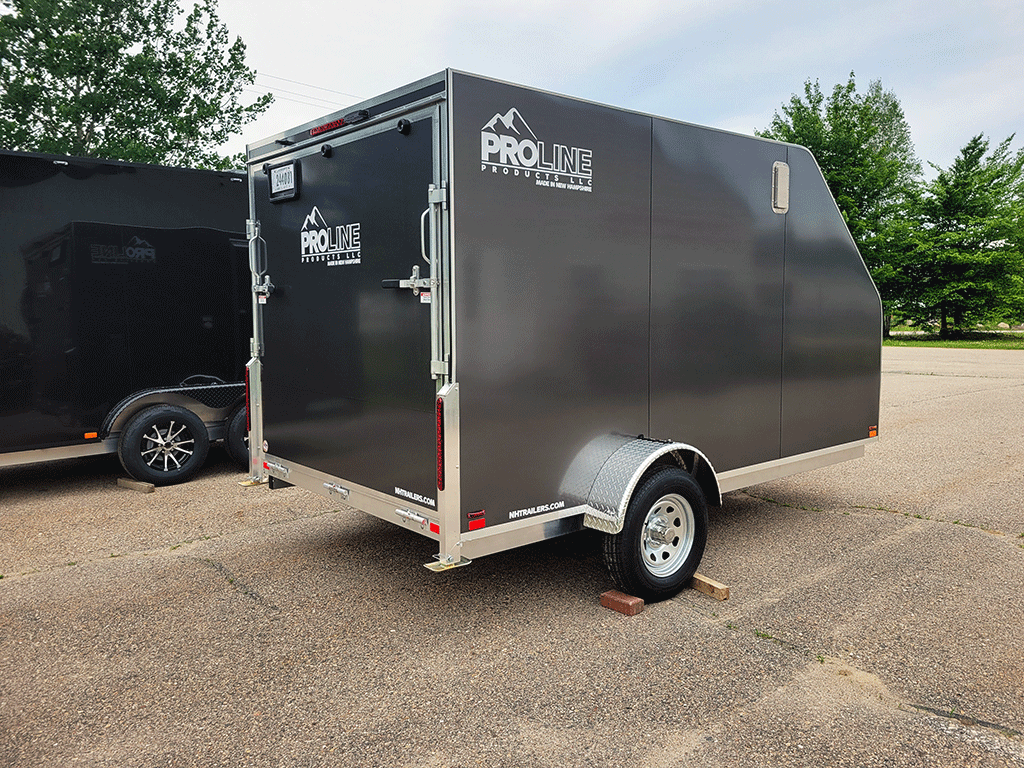

If you’re looking for a single place snowmobile trailer then you have found your solution! This 7′ wide x 12′ single axle trailer is great for a single snowmobile or ATV. The 7′ wide trailer box means significantly reduced wind resistance compared to wider trailers.
Swipe To See More Images

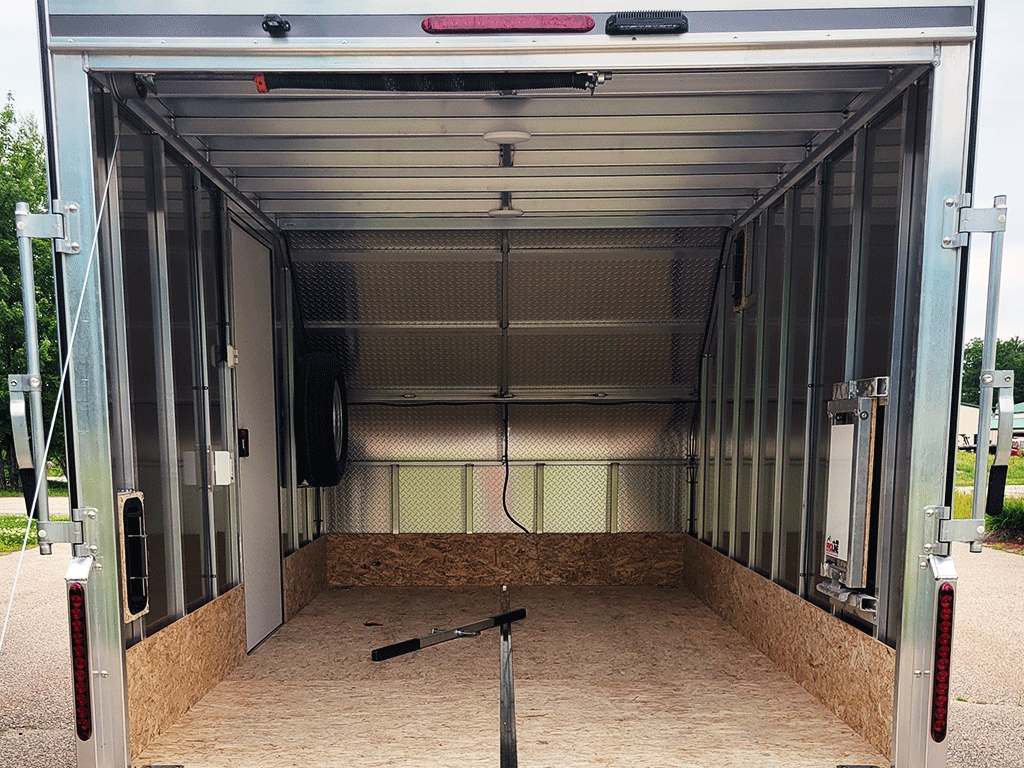

This single place snowmobile trailer is built from the ground up to handle whatever the winter roads throw at you. Starting on galvanized Dexter Torflex Axle(s) with E-Z Lube hubs, radial tires on galvanized wheels, and an extremely rugged 5″ mainframe. Inside the trailer, you’ll find a 3/4″ flooring, a full-length tie-down rail that’s welded to the trailer frame, and multiple LED interior lights so you’re not left in the dark.
The roof of these snowmobile trailers consists of a single sheet of mill finish aluminum adhered down to the 2″ thick roof cross members, framed on 16″ centers. All this adds up to a trailer roof stronger than any other of its kind. Every single light on our trailers come standard as LED for improved visibility and longevity. The screw-less exterior painted aluminum sheets will stay looking sharp for years and is available in your choice of 11 colors!
| Model | IS 712 |
|---|---|
| Factory Direct Price 5'6" Max Int Ht | $6,895 |
| Factory Direct Price 6'1" Max Int Ht | $7,015 |
| Interior Length | 11' 10" |
| Interior Width | 81" |
| Interior Height | 5'6", or 6'1" Options, Net Height Is Less |
| Overall Length | 16' |
| Overall Width | 102" |
| Overall Height | 94" |
| (5'6" Max Interior Height) | |
| Deck Height | 22" |
| Top of Ball / Ball Size | 19" / 2" |
| Curb Weight* | 1000# |
| GVWR | 2200# |
| Note | Other sizes available. Call for details. |
| Model | IS 712 |
|---|---|
| Frame | All Aluminum Tubular |
| 2"x5" Main Frame | |
| Axles | Galvanized Dexter Torflex w/ EZ Lube Hubs |
| (1) 2200# | |
| Brakes | Option |
| Tires | 13" Radial |
| 6 Year Tire Warranty w/ 4 Years Roadside Assistance | |
| Wheels | Galvanized Wheels w/ Chrome Center Cap & Acorn Lug Nuts |
| Exterior Skin | .030 Painted Aluminum Sheets - Screwless Full Stoneguard Front |
| Wall/Roof Structure | All Aluminum Tubular - 16" On Center |
| Roof Skin | Seamless Mill Finish Aluminum |
| Flooring | 3/4" GP DryMax High Performance Floor |
| Exterior Lights | LED Stop-Turn-Tail, LED Side Marker, LED Clearance, LED Plate Light |
| Interior Lights | 2 |
| Interior | 12" Kickboard on Interior Walls |
| Tiedowns | 1 Quick-Adjust Floor Rail w/ Ski Tie Down Bar |
| Trailer Doors | 76" Wide Rear Ramp Door w/ Spring Assist & Snow-Flap 32" x 68" Side Access Door w/ RV Lock OPTIONAL Easy Access Ski Door |
| Ramp Door Hinges | Aluminum w/ Grease Fittings |
| Jackstand | Swivel Jackstand w/ Wheel |
| Ventilation | CHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2) |
| 12V Power | 4 Way |
Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides. |
||
 |  | ![trailer color](https://nhtrailers.com/wp-content/uploads/2023/06/TrailerColor-Silver.jpg") |
 |  |  |
 |  |  |
 |  | |
SKU-Canopy
Add to cart
SKU-STS15
Add to cart
SKU-TWM
Add to cart
SKU-AWUG15
Select options This product has multiple variants. The options may be chosen on the product page
SKU-PLUG-7WayCold10
Select options This product has multiple variants. The options may be chosen on the product pageOur aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.
A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.
Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.
Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
