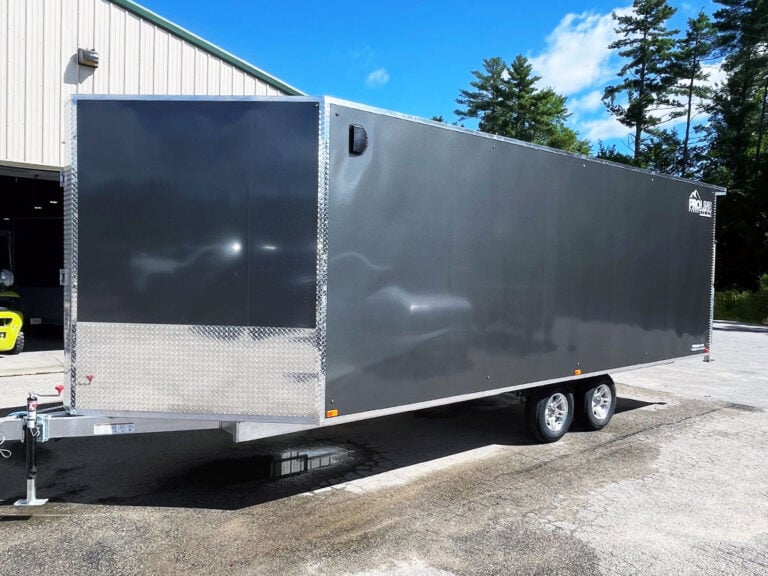

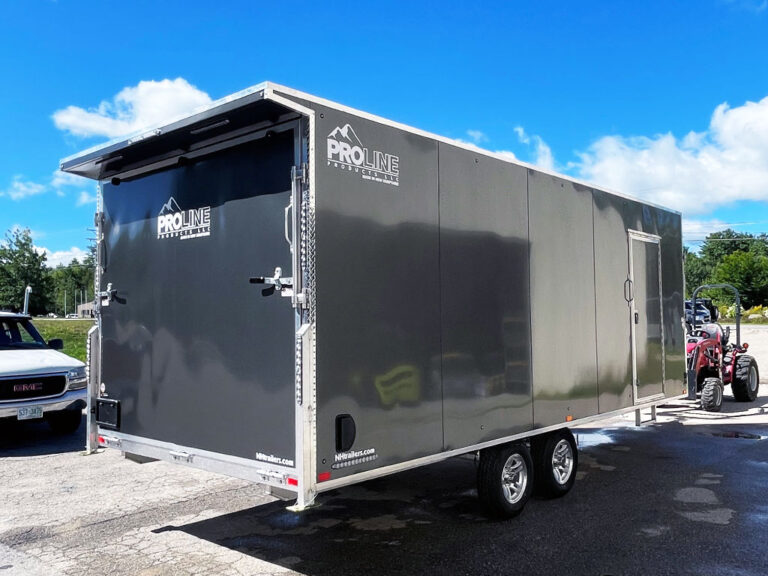

PROLine’s V-Nose enclosed snowmobile trailers gives you maximum width inside the trailer for snowmobiles, ATVs, and whatever other gear you need to bring to the trail. A full 98″ width, wall to wall, allows your snowmobiles or ATVs to fit beside each other in these V-nose enclosed trailers.
Swipe To See More Images
All aluminum and built on an incredibly rugged custom 2″x5″ heavy duty mainframe that runs the full length of the trailer, mated to none other than industry leading Dexter Torflex axles. Our trailers will you give you a better ride trip after trip, year after year.
On the ground, you’ll find quality radial tires and as with any of our trailers, both the front and rear ramp doors come standard with spring assists.
Lots of other great features come standard as well including side access door with RV latch, quality Ventline Pop-Up Roof Vent, LED trailer lights, multiple interior lights all wired into one switch, and two full length quick adjust tie-down rails that are welded to the trailer frame. Give us a call to get the perfect PROLine trailer for all your toys today!
| Model | S101-12VNT | S101-14VNT | S101-16VNT | S101-18VNT | S101-20VNT | S101-22VNT |
|---|---|---|---|---|---|---|
| Factory Direct Price 6'1" Max Int Ht | $10,695 | $11,295 | $11,895 | $12,395 | $12,995 | $13,695 |
| Interior Length | 11'11" + V | 13'11" + V | 15'11" + V | 17'11" + V | 19'11" + V | 21'11" + V |
| V Nose Length | 52" | |||||
| Interior Width | 98-1/4" | |||||
| Interior Height | 5'6", 6'1", 6'6", or 7' Options, Net Height Is Less | |||||
| Overall Length | 19'3" | 21'3" | 23'3" | 25'3" | 27'3" | 29'3" |
| Overall Width | 102" | |||||
| Overall Height | 103" | 103" | 103" | 107" | 107" | 107" |
| (6'1" Max Interior Height) | ||||||
| Deck Height | 25" | 25" | 25" | 29" | 29" | 31" |
| Top of Ball / Ball Size | 21" / 2" | 25" / 2" | 27" / 2" | |||
| Curb Weight* | 1900# | 2000# | 2175# | 2275# | 2350# | 2500# |
| GVWR | 6000# | 6000# | 6000# | 7000# | 7000# | 7000# |
| Model | S101-12VNT | S101-14VNT | S101-16VNT | S101-18VNT | S101-20VNT | S101-22VNT |
|---|---|---|---|---|---|---|
| Frame | All Aluminum Tubular - 2"x5" HD Main Frame | |||||
| Axles | Galvanized Dexter Torflex w/ EZ Lube Hubs | |||||
| Brakes | 10" Electric Self Adjusting on Both Axles | |||||
| Tires | 12" Radial Tires (ST145/R12 LRE) | 13" Radial Tires (ST175/80R13 LRD) | 14" Radials (ST175/75R14 LRC) | |||
| Wheels | Galvanized Wheels w/ Chrome Center Cap & Acorn Lug Nuts | |||||
| Exterior Skin | .030 Painted Sheets - Screwless 24" Aluminum Stoneguard on V-Nose |
|||||
| Wall/Roof Structure | All Aluminum Tubular - 16" On Center | |||||
| Roof Skin | Seamless Mill Finish Aluminum | |||||
| Flooring | 3/4" GP DryMax High Performance Floor | |||||
| Exterior Lights | All LED (Stop-Turn-Tail, Side Marker, Clearance, Plate Light) | |||||
| Interior Lights | 3 | 4 | ||||
| Interior | Kickboard on Interior Walls | |||||
| Tiedowns | 2 Quick-Adjust Floor Rails w/ Ski Tie Down Bars | |||||
| Trailer Doors | Front & Rear Ramp Doors w/ Spring Assist & Snow-Flaps 32" x 68" Side Access Door w/ RV Lock |
|||||
| Ramp Door | 93" Wide Rear - 63" Wide Front | |||||
| Ramp Door Hinges | Aluminum w/ Grease Fittings | |||||
| Jackstand | Swivel Jackstand w/ Wheel | Swivel Jackstand w/ Pedestal | ||||
| Ventilation | CHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2) | |||||
| 12V Power | 7 Way Plug (CW) | |||||
Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides. |
||
 |  | ![trailer color](https://nhtrailers.com/wp-content/uploads/2023/06/TrailerColor-Silver.jpg") |
 |  |  |
 |  |  |
 |  | |
SKU-STS12
Add to cart
SKU-STS13D
Add to cart
SKU-QADR
Add to cart
Our aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.
A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.
Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.
Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
