One trailer to rule them all. A versatile motorcycle trailer for the warm months and a drive on – drive off snowmobile trailer for winter. The 5 rows of fully adjustable tie-down rails in the floor accommodate most anything you want to tie down and combined with the front ramp door makes it very capable as a snowmobile trailer!
Our 7.5′ Wide Series is a full 90″ wide inside, plenty for two big touring bikes to fit side by side and leaves some extra room when loading ATVs or snowmobiles as well. Also, don’t forget all the standard features that you’ve come to expect out of a PROLine trailer. Front and rear ramp doors with spring-assists, side door, popup roof vent, aluminum stoneguard on the V-nose, LED trailer lights, multiple interior lights with switch, white FRP finished interior all standard. Let us custom build you a trailer today!
Model | MULTI 90-14 | MULTI 90-16 | MULTI 90-18 | MULTI 90-20 |
---|---|---|---|---|
Factory Direct Price 6'1" Max Int Ht | $12,695 | $13,395 | $14,195 | $14,895 |
Interior Length | 14' box + 54" V-nose | 16' box + 54" V-nose | 18' box + 54" V-nose | 20' box + 54" V-nose |
Interior Width | 90" | |||
Interior Height | Option | |||
Overall Length | 20'9" | 22'9" | 24'9" | 26'9" |
Overall Width | 102" | |||
Overall Height | See Link | |||
Deck Height | 21" | |||
Top of Ball / Ball Size | 17" / 2-5/16" | |||
Curb Weight* | 2300# | 2400# | 2500# | 2600# |
GVWR | 7000# | |||
Note | Other sizes available. Call for details. |
Model | ALL MODELS |
---|---|
Frame | All Aluminum Tubular - 2"x5" Main Frame |
Axles | Dexter Torflex w/ EZ Lube Hubs |
Brakes | 10" Electric Self Adjusting on Both Axles |
Tires/Wheels | ST205/75R15 LRC Tires on Galvanized Wheel |
Wheel Wells Dimensions | 69" W x 12.5" H x 3.25" D |
Exterior Skin | .030 Painted Aluminum Sheets - Screwless 24" Stoneguard on V-Nose |
Wall/Roof Structure | All Aluminum Tubular - 16" On Center |
Roof Skin | Seamless Mill Finish Aluminum |
Flooring | 3/4" GP DryMax High Performance Floor |
Exterior Lights | LED Stop-Turn-Tail, LED Side Marker, LED Clearance, LED Plate Light |
Interior Lights | 3(MULTI 90-14, MULTI 90-16) / 4(MULTI 90-18, MULTI 90-20) |
Interior | White FRP Finished Interior Walls w/ Kickboard |
Tiedowns | 5 Quick-Adjust Floor Rails |
Trailer Doors | Front & Rear Ramp Door w/ Spring Assists & Snow-Flaps 32" x 68" Side Access Door w/ RV Lock |
Jackstand | Pedestal Mount Jackstand w/ Removable Foot |
Ramp Door Openings | 85" Wide - 63" Wide Front |
Ramp Door Hinges | Aluminum w/ Grease Fittings |
Ventilation | CHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2) |
12V Power | 7 Way Round Plug |
Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides. |
||
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() |
SKU-Canopy
Add to cartSKU-STS15
Add to cartSKU-TWM
Add to cartSKU-AWUG15
Select options This product has multiple variants. The options may be chosen on the product pageSKU-110V-Simple

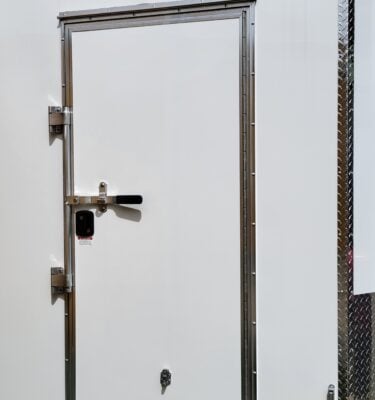

Select options This product has multiple variants. The options may be chosen on the product pageSKU-BRLK
Add to cartSKU-QADR
Add to cartSKU-LED-IntAdd
Add to cartSKU-SDRV
Select options This product has multiple variants. The options may be chosen on the product pageSKU-LT-SwitchDimmer
Add to cartSKU-STP-SD90
Add to cartSKU-SkidWheels-BoltOn
Add to cartSKU-LED-Ghost-
Select options This product has multiple variants. The options may be chosen on the product pageSKU-CAB441615SD
Add to cartSKU-LED-BULit
Add to cartSKU-LED-Loading
Add to cartSKU-CHX-
Select options This product has multiple variants. The options may be chosen on the product pageSKU-PURV-RVCover
Add to cartSKU-BENCH-12x21
Add to cartSKU-LK-Pucklock
Select options This product has multiple variants. The options may be chosen on the product pageSKU-FINCEILING
Read moreOur aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.
A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.
Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.
Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
To Get A Custom Trailer Quote Today!
