Wide-Body Aluminum Car Trailer

Maximum Width.
Maximum Versatility.

Elevate your track day experience with our premium enclosed aluminum car trailer. Engineered to exceed expectations in quality and convenience, this innovative design offers more usable space, enhanced tie-down versatility, and the option to include our XL Escape Door with a removable wheel well.

You can be sure that when you strap down your precious ride that you’ve got more than just screws, wood, and hope like some other manufacturer do. Our Wide-body car hauler trailers feature a versatile, full-length tie-down system, providing ultimate security for your precious cargo. We utilize the ultra-versatile E-track and recess it into our flooring. Underneath the E-track are strips of aluminum plating that get welded to the 16″ on-center floor crossmembers. Load up, strap down, and get going, and leave the worries behind.

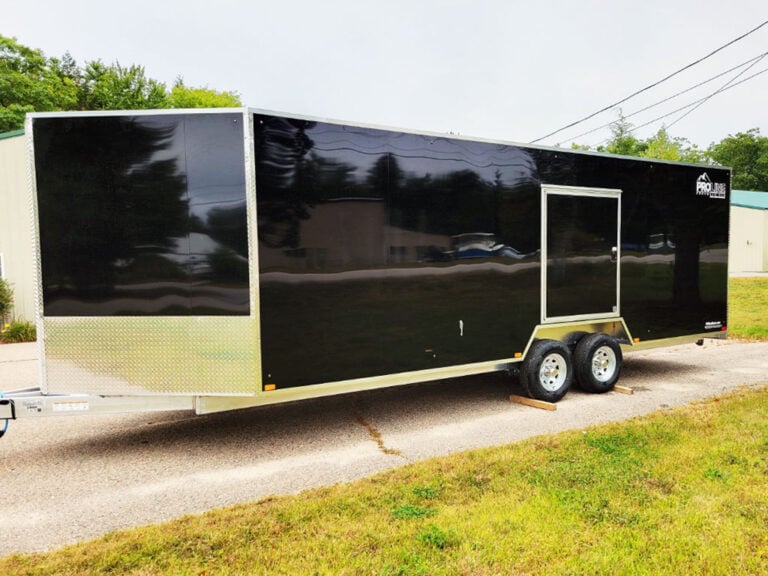

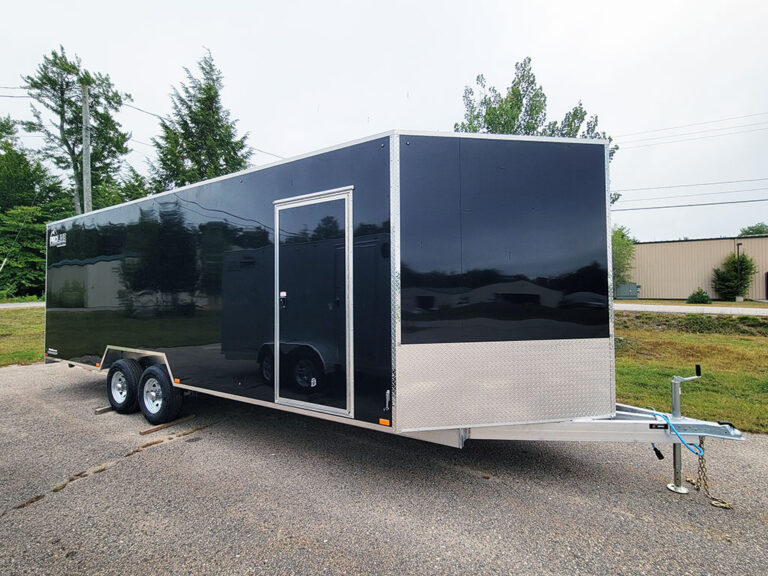

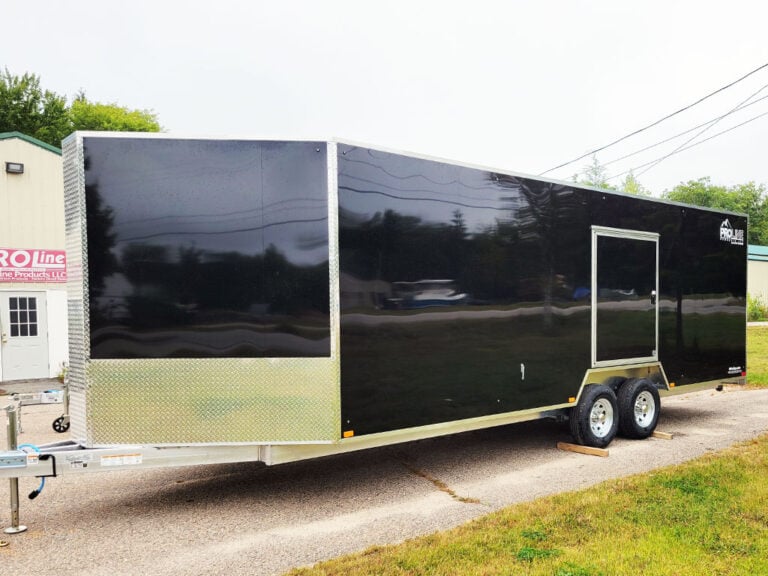

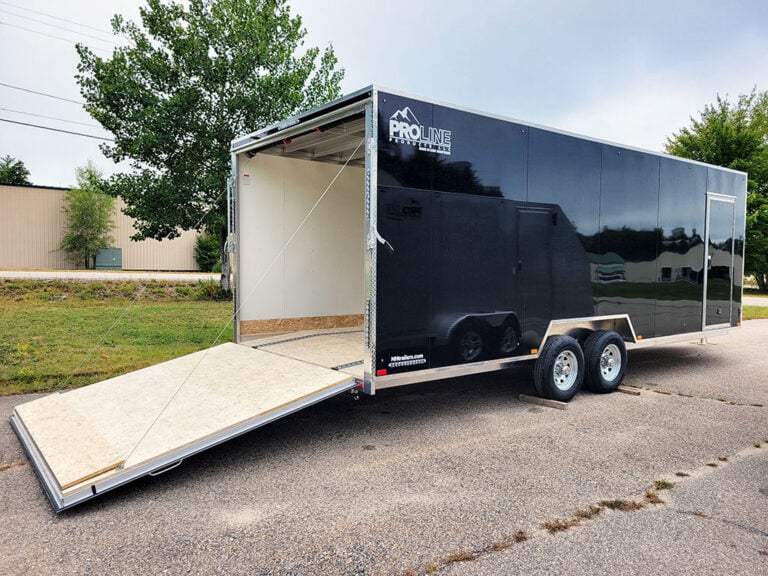

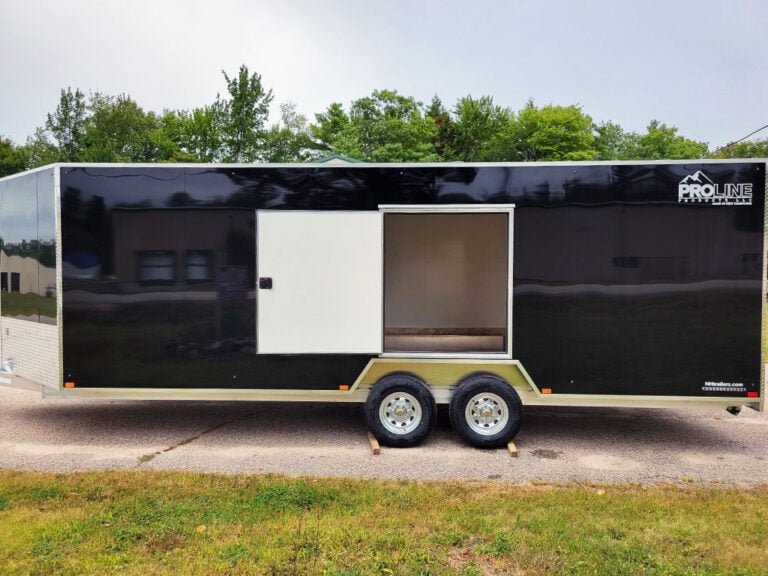

CRHL101-22HD Black
CRHL101-22HD Black
CRHL101-22HD Black
CRHL101-22HD Black
CRHL101-22HD Black
CRHL101-22HD Black
CRHL101-22HD Black
CRHL101-22HD Black
Pictures may include upgrades or optional accessories.

While flashy features may catch your eye, we remain firmly grounded as a “ground up” focused trailer manufacturer. A key component of our trailers are the premium radial tires, backed by a robust 6-year warranty, improved speed ratings surpassing industry standards, and include roadside assistance for your reassurance. These quality tires paired with galvanized Dexter torsion axles, ensure our trailers a smooth ride for years to come. The fully boxed, fully welded tubular main frame, along with the three-piece A-frame style tongue, creates a robust yet lightweight aluminum body, perfectly suited for your hauling needs.

Experience the pinnacle of hauling excellence with our aluminum car trailers. Whether it’s track days or cross-country adventures, you can trust in our dedication to quality, innovation, and performance

  • Standard Full Length Recessed Tie Downs
  • Dexter Torsion Axles To Reduce Bumps
  • 15" Radial Tires That Run Cooler & Last Longer
  • White FRP Interior Wall Paneling for Clean Finish
  • Bright LED Lighting Inside & Out
  • Aluminum Tubular Frame Engineered for Strength
Let's Talk Trailers
Get A Quote

ModelCRHL101-18CRHL101-20CRHL101-20HDCRHL101-22HD
Factory Direct Price
6'6" Max Int Ht		$13,995$14,695$16,595$17,395
Interior Length17' 11" Box + 52" V19' 11" Box + 52" V19' 11" Box + 52" V21'11" Box + 52" V
Interior Width98.5"
Interior Height5'6", 6'1", 6'6", or 7'0" Options, Net Height Is Less
Overall Length25'27'27'29'
Overall Width102"
Overall Height105" (6'6" Max Interior Height)106" (6'6" Max Interior Height)
Deck Height21"21"22"22"
Top of Ball / Ball Size17" / 2-5/16"18" / 2-5/16"
Curb Weight*2500#2700#2800#2950#
GVWR7000#7000#9900#9900#
NoteOther sizes available. Call for details.

ModelCRHL101-18CRHL101-20CRHL101-20HDCRHL101-22HD
FrameAll Aluminum Tubular - Heavy Duty 2"x5" Main Frame
16" On Center Floor Crossmembers		All Aluminum Tubular - Heavy Duty 2"x6" Main Frame
16" On Center Floor Crossmembers
Axles(2) 3.5k(2) 5.2k
Galvanized Dexter Torflex™ w/ EZ Lube Hubs
Brakes10" Electric Self Adjusting on Both Axles12" Electric Self Adjusting on Both Axles
Tires15" Radial Tires
WheelsGalvanized Wheels w/ Chrome Center Caps & Acorn Lug Nuts
Distance Between Wheel Wells83-1/2"*80"*
*XL Escape Door option reduces by ~1.25"
Wheel Well Height11"TBD
Exterior Skin.030 Painted Aluminum - Screwless
24" Stoneguard on V-Nose
Wall/Roof StructureAll Aluminum Tubular - 16" On Center
Roof SkinSeamless Mill Finish Aluminum
Flooring3/4" GP DryMax High Performance Floor
Exterior LightsAll LED (Stop-Turn-Tail, Side Marker, Clearance, Plate Light)
Interior Lights3 (LED)4 (LED)4 (LED)5 (LED)
InteriorWhite FRP Finished Interior Walls
TiedownsBox Length Recessed E-Track (2)
Trailer Doors90" Wide Heavy Duty Rear Ramp Door w/ Spring Assist
32" x 68" Side Access Door w/ RV Lock
Ramp Door HingesAluminum w/ Grease Fittings
JackstandPedestal Mount Jackstand w/ Removable Foot
VentilationCHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2)
12 V Power7 Way Round

Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.
enclosed motorcycle trailertrailer colorstrailer color
Wide Body Aluminum Car Hauler 1colorsWide Body Aluminum Car Hauler 2
Wide Body Aluminum Car Hauler 3Wide Body Aluminum Car Hauler 4Wide Body Aluminum Car Hauler 5
Wide Body Aluminum Car Hauler 6Wide Body Aluminum Car Hauler 7

Popular Options listed below. Others may be available, see Options Page for more.
Please note, not all options available on all models, call for details.

Rugged Aluminum Frame

Our aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.

Quality Trailer Parts

A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.

2.5x Stronger Roof

Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.

Attention To Detail

Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
