9900# GVWR Aluminum Car Hauler

the Superior Strength & Style of Our #9900 GVWR Car Trailer.

This enclosed car hauler trailer is built to take you, your car, and your tools wherever you need them to be. With tandem 5.2K axles and a heavy duty frame built on custom 2×6 aluminum tubes, it’s ready for the long haul. The rear ramp door height comes in at 72″ high (for a 6’6″ interior) but is easily lengthened by adding an optional beavertail and/or increasing the trailer’s interior height.

Though many car enthusiasts tend to add some luxuries to their trailer to make them work EXACTLY how they want it to, the trailer does come standard with everything you’d need in a car hauler. These features include a locking side access door, quality pop-up roof vent, LED trailer lites, 4 in-floor D-rings with aluminum backing plates welded to the trailer frame. We use only the best running gear so this trailer sits on two 5200# Dexter Torsion Axles with EZ Lube Hubs, Dexter’s NevR Adjust Brakes on both axles, and 15″ 225 series radial tires that carry a 5-year warranty. Isn’t it time your trailer looks as nice as the car you put in it?

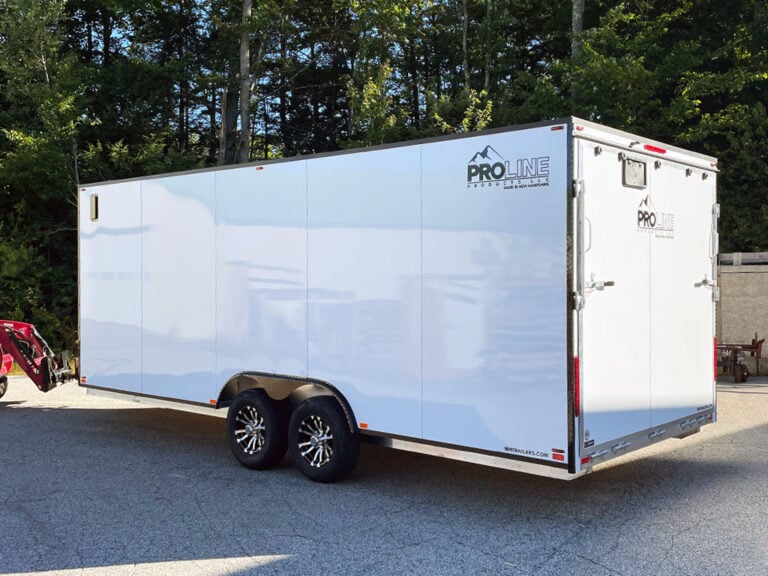

CHRL820LB-HD White with Blackout Trim

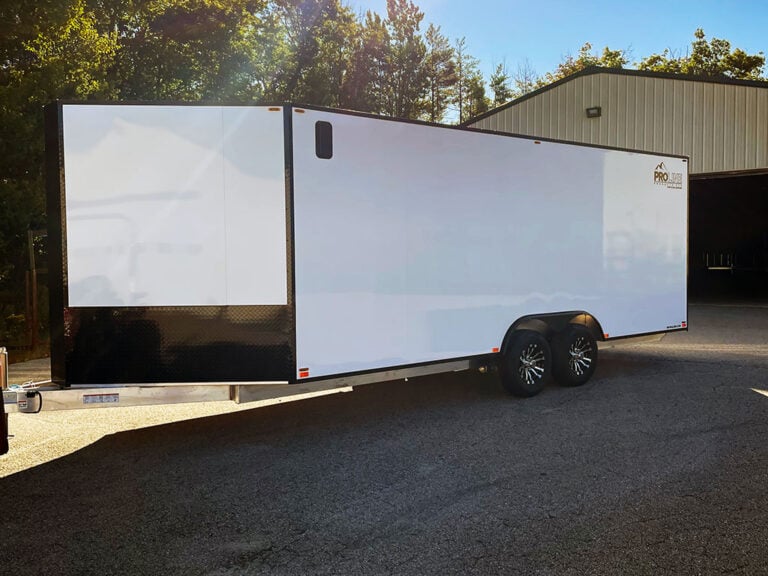

CHRL820LB-HD White with Blackout Trim

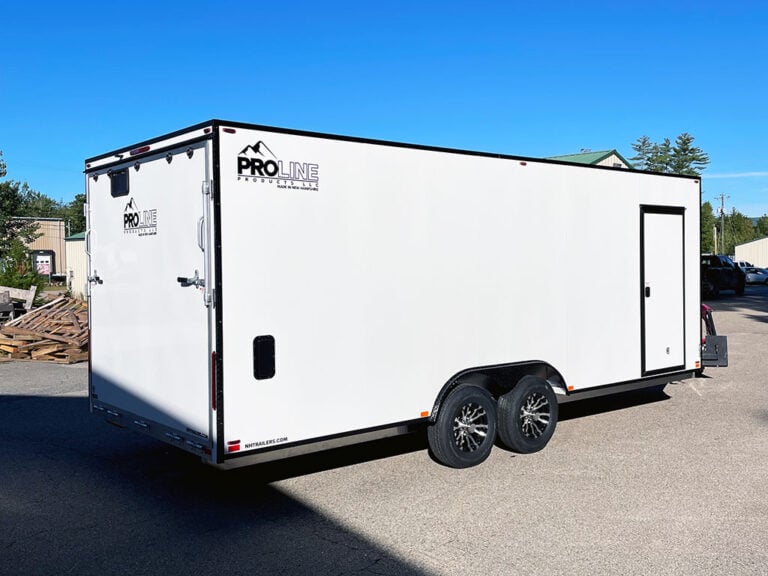

CHRL820LB-HD White with Blackout Trim
CHRL820LB-HD White with Blackout Trim
CHRL820LB-HD White with Blackout Trim
Pictures may include upgrades or optional accessories.
  • Lower Deck Heights For Easier Loading
  • Dexter Torsion Axles To Reduce Bumps
  • White FRP Interior Walls For Clean Finish
  • Rear Ramp Doors With Spring Assists
  • 15" Radial Tires That Run Cooler & Last Longer
  • 2x5" Frame, Wall Uprights, 16" Ceiling On Center
Let's Talk Trailers
Get A Quote

ModelCRHL 820LB-HDCRHL 822LB-HDCRHL 824LB-HDCRHL 826LB-HD
Factory Direct Price
6'6" Max Int Ht		 $17,295
 $18,095
 $19,295
 $20,495
Interior Length19'11" Box + 52" V21'11" Box + 52" V23'11" Box + 52" V25'11" Box + 52" V
Interior Width96" (81" Between Wheel Wells)
Interior Height5'6", 6'1", 6'6", or 7'0" Options, Net Height Is Less
Overall Length27'29'31'33'
Overall Width102"
Overall Height107" (6'6" Max Interior Height)
Deck Height22-1/2"
Top of Ball / Ball Size19" / 2-5/16"
Curb Weight*2950#3100#3250#3400#
GVWR9900#
NoteOther sizes available. Call for details.

ModelCRHL 820LB-HDCRHL 822LB-HDCRHL 824LB-HDCRHL 826LB-HD
FrameAll Aluminum Tubular - Heavy Duty 2"x6" Main Frame
Axles(2) 5.2k Galvanized Dexter Torflex™ w/ EZ Lube Hubs
Brakes12" Electric Self Adjusting on Both Axles
Tires15" Radial Tires (ST225/75R15 LRD)
WheelsGalvanized Wheels w/ Chrome Center Caps & Acorn Lug Nuts
Wheel Well Height10"
Distance Between Wheel Wells81"
Exterior Skin.030" Painted Aluminum Sheets - Screwless
24" Stoneguard on V-Nose
Wall/Roof StructureAll Aluminum Tubular - 16" On Center
Roof SkinSeamless Mill Finish Aluminum
Flooring3/4" GP DryMax High Performance Floor
Exterior LightsAll LED (Stop-Turn-Tail, Side Marker, Clearance, Plate Light)
Interior Lights4 (LED)5 (LED)
InteriorWhite FRP Finished Interior Walls
TiedownsFour D-Rings with Aluminum Backing Plates
Trailer Doors90" Wide Heavy Duty Rear Ramp Door w/ Spring Assist
32" x 68" Side Access Door w/ RV Lock
Ramp Door HingesAluminum w/ Grease Fittings
JackstandPedestal Mount Jackstand w/ Removable Foot
VentilationCHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2)
12 V Power7 Way Round

Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.
enclosed motorcycle trailertrailer colorstrailer color
9900 GVWR Aluminum Car Hauler 1colors9900 GVWR Aluminum Car Hauler 2
9900 GVWR Aluminum Car Hauler 39900 GVWR Aluminum Car Hauler 49900 GVWR Aluminum Car Hauler 5
9900 GVWR Aluminum Car Hauler 69900 GVWR Aluminum Car Hauler 7

Popular Options listed below. Others may be available, see Options Page for more.
Please note, not all options available on all models, call for details.

Rugged Aluminum Frame

Our aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.

Quality Trailer Parts

A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.

2.5x Stronger Roof

Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.

Attention To Detail

Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
