7.5' Wide Motorcycle Trailer

Superior Strength & Style of Our 7.5' Wide Motorcycle Trailer.

PROLine’s 7.5′ wide motorcycle trailers are some of the most versatile trailers on the market. Designed from the ground up for hauling motorcycles the 90″ interior width gives you room to fit two motorcycles side by side. Also, the low deck height improves the trailer’s aerodynamics and center of gravity but also allows for an easier ramp angle to get your bikes loaded into the trailer.

Five rows of fully adjustable tie-down rails welded to the trailer frame accommodate a combination of multiple bikes, trikes, Can Am Spyders, and whatever other gear you may have. With our tie down rail system, you’re not forced into putting your bikes in the same spot each time allowing you to maximize floor space in the trailer and making it easier to maintain a balanced load.

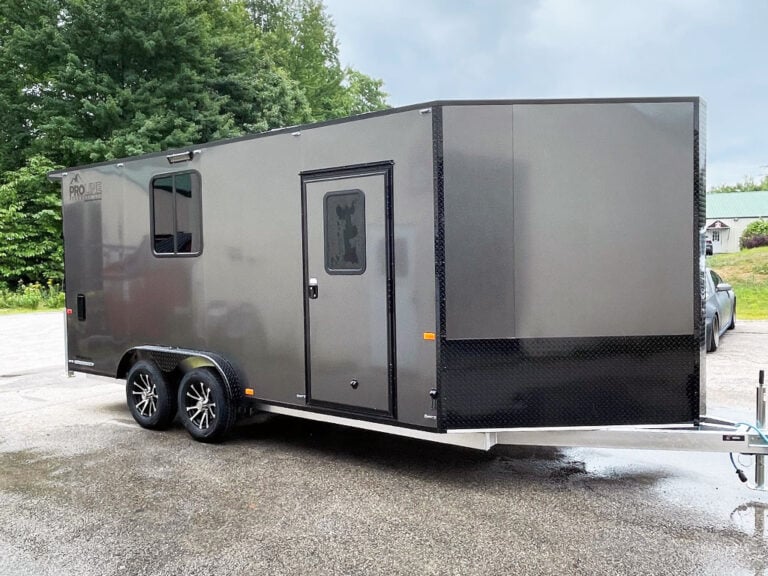

MOT90-16w/Canopy and BOT

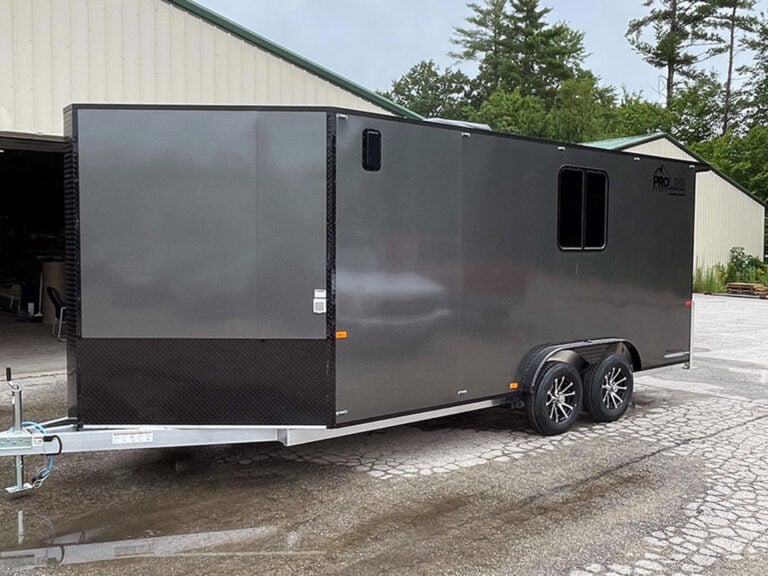

MOT90-16w/Canopy and BOT

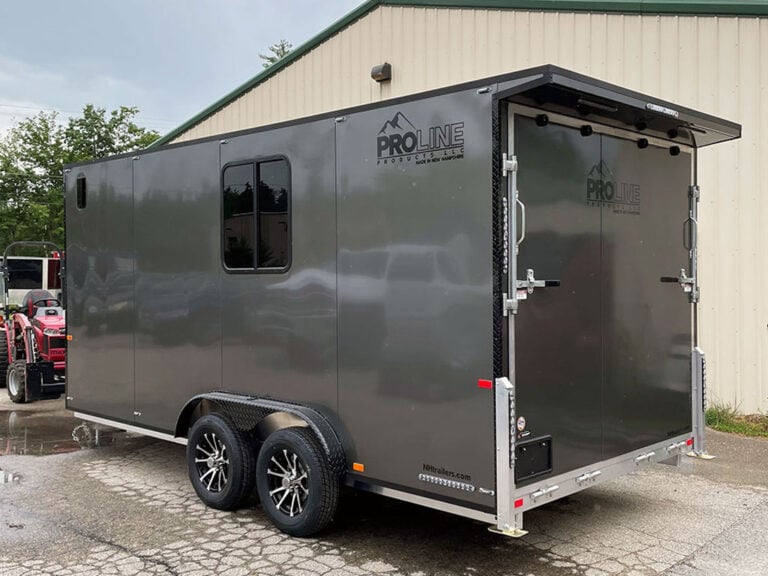

MOT90-16w/Canopy and BOT
MOT90-16w/Canopy and BOT
MOT90-16w/Canopy and BOT
Pictures may include upgrades or optional accessories.

Structurally this trailer is designed with a very rigid all aluminum frame mated to a pair of Dexter Torflex Axles. The rubber torsion axles give your bikes a much smoother ride compared to spring axles. On those axles, you’ll find 15″ radial tires that carry a 5 year warranty and 10″ self-adjusting brakes for all 4 wheels. A 3/4″ flooring is used on all of our enclosed trailers so the weight of your bike is properly supported on the frame. Overhead you’ll find 2″ thick roof cross members on 16″ centers so not only will your trailer be ready for your motorcycles in the summer months but will hold up just fine as the snow piles on over the course of winter.

Consider adding our 110V package to trickle charge your bike batteries for long term storage as well.

These enclosed motorcycle hauler trailers are great for a variety of bikes or even trikes or Can Am Spyder! As always, if you have a unique motorcycle or situation feel free to give us a call. With years of trailer experience, our friendly sales staff can help design a trailer to accommodate most anything on two (or three) wheels.

  • Lower Deck Heights For Easier Loading
  • Dexter Torsion Axles To Reduce Bumps
  • Adjustable Tie Downs for Ultimate Versatility
  • White FRP Interior Walls For Clean Finish
  • 15" Radial Tires That Run Cooler & Last Longer
  • 2"x5" HD Aluminum Tubular Main Frame
Let's Talk Trailers
Get A Quote

ModelMOT 90-12MOT 90-14MOT 90-16MOT 90-18MOT 90-20
Factory Direct Price
6'1" Max Int Ht		 $10,995
$11,595 $12,295
 $13,095
 $13,795
Interior Length11'11" box + 52" V13'11" box + 52" V15'11" box + 52" V17'11" box + 52" V19'11" box + 52" V
Interior Width7-1/2' (90")
Interior Height5'6", 6'1", 6'6", or 7'0" Options, Net Height Is Less
Overall Length18'9"20'9"22'9"24'9"26'9"
Overall Width102"
Overall Height99" (6'1" Max Interior Height)
Deck Height21"
Top of Ball / Ball Size17" / 2-5/16"
Curb Weight*2025#2100#2200#2300#2400#
GVWR7000#
NoteOther sizes available. Call for details.

ModelMOT 90-12MOT 90-14MOT 90-16MOT 90-18MOT 90-20
FrameAll Aluminum Tubular - 2"x5" HD Main Frame
Axles(2) 3.5k Galvanized Dexter Torflex™ w/ EZ Lube Hubs
Brakes10" Electric Self Adjusting on Both Axles
Tires15" Radial Tires (ST205/75R15 LRC)15" Radial Tires (ST205/75R15 LRD)
WheelsGalvanized Wheels w/ Chrome Center Caps & Acorn Lug Nuts
Exterior Skin.030 Painted Aluminum - Screwless
24" Stoneguard on V-Nose
Wall/Roof StructureAll Aluminum Tubular - 16" On Center
Roof SkinSeamless Mill Finish Aluminum
Flooring3/4" GP DryMax High Performance Floor
Exterior LightsAll LED (Stop-Turn-Tail, Side Marker, Clearance, Plate Light)
Interior Lights23344
InteriorWhite FRP Finished Interior Walls
Tiedowns5 Quick-Adjust Floor Rails
Trailer Doors85" Wide Rear Ramp Door w/ Spring Assist & Transition Flap
32" x 68" Side Access Door w/ RV Lock
Ramp Door HingesAluminum w/ Grease Fittings
JackstandPedestal Mount Jackstand w/ Removable Foot
VentilationCHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2)
12V Power7 Way

Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.
enclosed motorcycle trailertrailer colorstrailer color
7.5' Wide Enclosed Aluminum Motorcycle Hauler 1colors7.5' Wide Enclosed Aluminum Motorcycle Hauler 2
7.5' Wide Enclosed Aluminum Motorcycle Hauler 37.5' Wide Enclosed Aluminum Motorcycle Hauler 47.5' Wide Enclosed Aluminum Motorcycle Hauler 5
7.5' Wide Enclosed Aluminum Motorcycle Hauler 67.5' Wide Enclosed Aluminum Motorcycle Hauler 7

Popular Options listed below. Others may be available, see Options Page for more.
Please note, not all options available on all models, call for details.

Rugged Aluminum Frame

Our aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.

Quality Trailer Parts

A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.

2.5x Stronger Roof

Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.

Attention To Detail

Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
