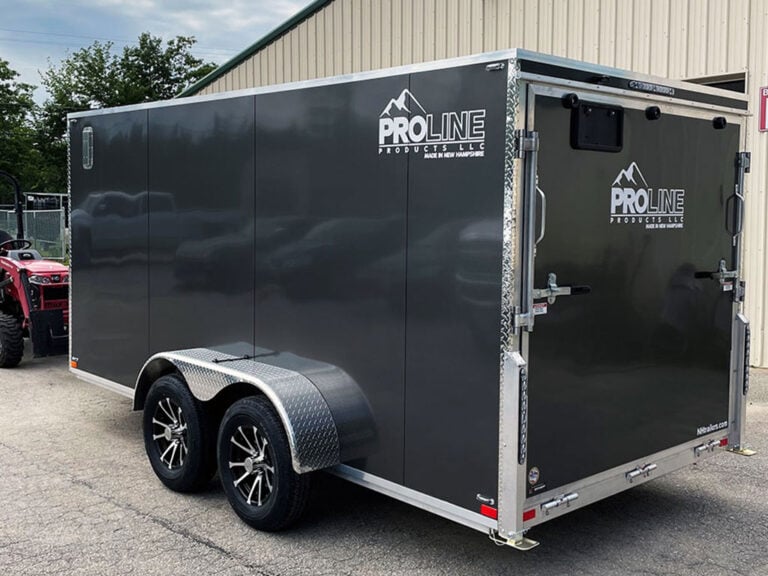

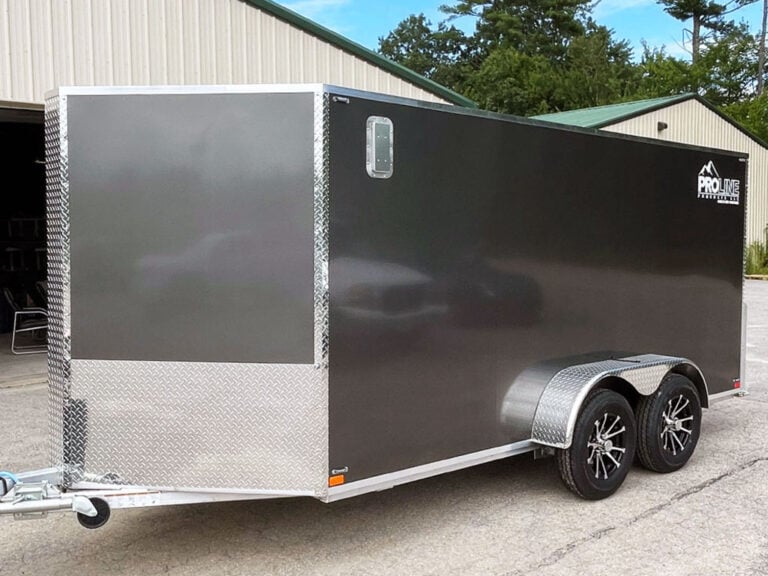

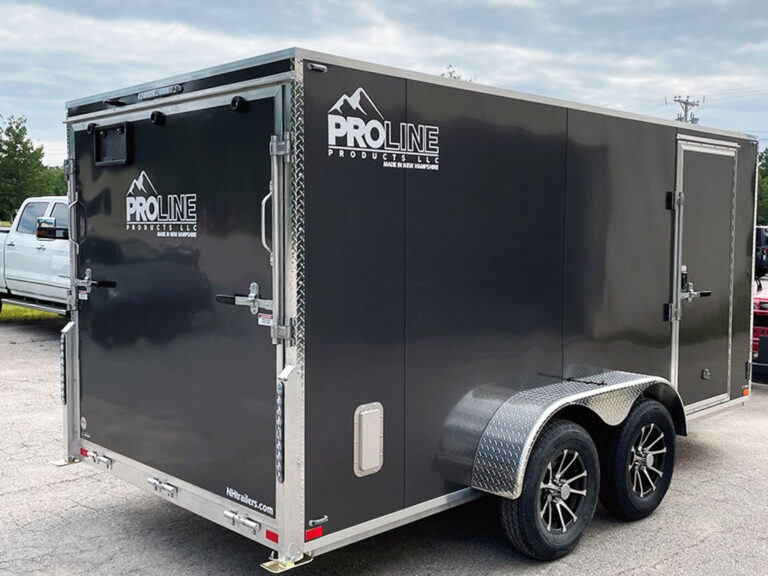

Enclosed Aluminum Motorcycle Hauler

This lower deck height gives us improved aerodynamics as well as an easy grade into the ramp door of the trailer for your motorcycle. Inside this enclosed trailer you’ll be welcomed by five rows of our fully adjustable Quick-Adjust Tie Down Rails, that are welded right to the trailer frame. These tie down rails allow for total flexibility in how you secure your motorcycles and your gear. Have just one bike on the next trip? Put it right in the middle. Two bikes? No problem at all, stagger the handlebars slightly and head off on your next road trip.

The structure and overall design of this trailer are what truly sets itself apart. We start with a very rigid all-aluminum tubular frame and bolt on industry-leading Dexter Torflex Axle(s) with EZ Lube Hubs. Quality 15″ radial tires are used to keep running cool even on the hot summer days on your trip to the Sturgis rally. Inside you’ll find the interior walls are finished off with a white vinyl product which is sturdy enough to protect the trailer skin but helps keep the inside looking clean and bright. We use a 3/4″ flooring to properly support the weight of your bike and overhead are 2″ thick roof cross members on 16″ centers. This means not only will your trailer be ready for your bikes in the summer but it’ll be perfectly fine as the snow builds up on her over the winter, with your bikes nestled carefully inside.

Pricing & Specs

Model	MOT 80-12	MOT 80-12T	MOT 80-14	MOT 80-16
Factory Direct Price 6'1" Max Int Ht	$5,495	$6,395	$6,795	$7,195
Factory Direct Price 6'6" Max Int Ht	$5,675	$6,575	$7,005	$7,435
Interior Length	11'11" box + 35" V	11'11" box + 35" V	13'11" box + 35" V	15'11" box + 35" V
Interior Width	77"
Interior Height	5'6", 6'1", or 6'6" Options, Net Height Is Less
Overall Length	17'5"	17'5"	19'5"	21'5"
Overall Width	102"
Overall Height	96" (6'1" Max Interior Height)
Deck Height	18 "
Top of Ball / Ball Size	17" / 2"
Curb Weight*	1325#	1700#	1800#	1925#
GVWR	2990#	6000#	6000#	6000#

Standard Features

Model	MOT 80-12	MOT 80-12T	MOT 80-14	MOT 80-16
Frame	All Aluminum Tubular , 2"x5" Main Frame
Axles	3.5k Galvanized Dexter Torflex™ w/ EZ Lube Hubs
Axle Qty	1	2	2	2
Brakes	Option	10" Electric Self Adjusting on Both Axles
Tires/Wheels	ST205/75R15 LRC Tires on Galvanized Wheel
Exterior Skin	.030 Painted Aluminum - Screwless 24" Stoneguard on V-Nose
Wall/Roof Structure	All Aluminum Tubular - 16" On Center
Roof Skin	Seamless Mill Finish Aluminum
Flooring	3/4" GP DryMax High Performance Floor
Exterior Lights	LED Stop-Turn-Tail, LED Side marker, and LED Clearance
Interior Lights	2	2	3	3
Interior	White Vinyl Finished Interior Walls
Tiedowns	5 Quick-Adjust Floor Rails
Trailer Doors	72" Wide Rear Ramp Door w/ Spring Assist & Transition Flap 32" x 68" Side Access Door w/ RV Lock
Ramp Door Hinges	Aluminum w/ Grease Fittings
Jackstand	Swivel Jackstand w/ Wheel
Ventilation	Ventline Pop-Up Roof Vent
12V Power	4 Way	7 Way	7 Way	7 Way

Available Colors

Every PROLine trailer is available in 11 different solid colors at no additional charge for any one color. We also offer Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.

White	Black	Silver	Pewter Metallic	Charcoal Metallic	Indigo Blue Metallic
Victory Red	Orange	Emerald Green Metallic	Brandywine	Yellow	Two-Tone +$200

Get A Custom Quote

Call us at 603-652-7337 or e-mail us to discuss the best trailer for your needs. We’d be happy to discuss our many different trailer models, options, and accessories to find the configuration that’s right for you. Once we know what you’re looking for we can put together a custom, itemized quote for you to review.
