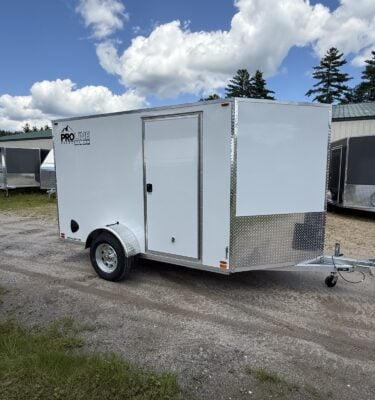

Looking for a rugged and lightweight aluminum cargo trailer? These trailers are all built on all aluminum frames and paired with a galvanized Dexter Torflex axle with EZ Lube hubs. Our enclosed cargo trailers are available in many widths and lengths so if you don’t see what you want listed below please give us a call.
Like all our aluminum trailers these single axle cargo trailers are built right and ready to go to work. Screw-less aluminum painted exterior sides, LED trailer lights, side door with RV latch, quality roof vent, 3/8″ interior walls, multiple LED interior lights with switch, swivel tongue jack, galvanized wheels, and 15″ radials all standard features.

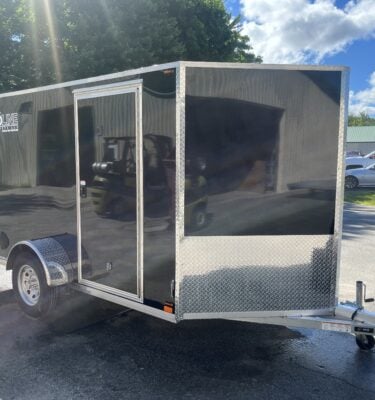

| Model | CRG 510 | CRG 610 | CRG 612 | CRG 80-12 |
|---|---|---|---|---|
| Factory Direct Price 6'1" Max Int Ht | $6,595 | $6,995 | $7,595 | $7,595 |
| Interior Length | 9'11" + 20" V | 9'11" box + 3' V | 11'11" box + 3' V | 11'11" Box + 35" V |
| Interior Width | 57" | 69" | 69" | 77" |
| Interior Height | 5'6", 6'1", or 6'6" Options, Net Height Is Less | |||
| Overall Length | 13'7" | 15'1" | 17'1" | 17'5" |
| Overall Width | 82" | 94" | 94" | 102" |
| Overall Height | See Link | |||
| Deck Height | 18" | 18" | 18" | 20" |
| Top of Ball / Ball Size | 17" / 2" | |||
| Curb Weight* | 950# | 1150# | 1225# | 1350# |
| GVWR | 2990# | 2990# | 2990# | 2990# |
| Note | Other sizes available. Call for details. | |||
| Model | ALL MODELS |
|---|---|
| Frame | All Aluminum Tubular - 2"x5" Main Frame |
| Axles | Galvanized Dexter Torflex w/ EZ Lube Hubs |
| Brakes | Option |
| Tires | ST205/75R15 LRC Radial Tires |
| Wheels | 15" Galvanized Wheels w/ Chrome Center Cap & Acorn Lug Nuts |
| Exterior Skin | .030 Painted Aluminum Sheets - Screwless 24" Stoneguard on V-Nose |
| Wall/Roof Structure | All Aluminum Tubular - 16" On Center |
| Roof Skin | Seamless Mill Finish Aluminum |
| Flooring | 3/4" GP DryMax High Performance Floor |
| Exterior Lights | LED Stop-Turn-Tail, LED Sidemarker, LED Clearance, LED Plate Light |
| Interior Lights | 2 |
| Interior | 3/8" GP Drymax Iterior Walls |
| Tiedowns / Roof Racks | Option |
| Trailer Doors | 32" x 68" Side Access Door w/ RV Lock CHOICE: Rear Ramp Door w/ Spring Assist or Rear Cargo Door(s) |
| Jackstand | Swivel Jackstand w/ Wheel |
| Ramp Door Hinges | Aluminum w/ Grease Fittings |
| Ventilation | CHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2) |
| 12 V Power | 4 Way |
Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides. |
||
 |  | ![trailer color](https://nhtrailers.com/wp-content/uploads/2023/06/TrailerColor-Silver.jpg") |
 |  |  |
 |  |  |
 |  | |
SKU-LRR
Select options This product has multiple variants. The options may be chosen on the product page
SKU-STS15
Add to cart
SKU-TWM
Add to cart
SKU-AWUG15
Select options This product has multiple variants. The options may be chosen on the product page
SKU-LED-IntAdd
Add to cart
SKU-LT-SwitchDimmer
Add to cart
SKU-ETRK
Read more
SKU-LED-Ghost-
Select options This product has multiple variants. The options may be chosen on the product page
SKU-LTRK-
Select options This product has multiple variants. The options may be chosen on the product page
SKU-LED-BULit
Add to cart
SKU-STP-RD
Add to cart
SKU-PURV-RVCover
Add to cart
SKU-LK-Pucklock
Select options This product has multiple variants. The options may be chosen on the product pageOur aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.
A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.
Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.
Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
To Get A Custom Trailer Quote Today!
