Pictures shown with options

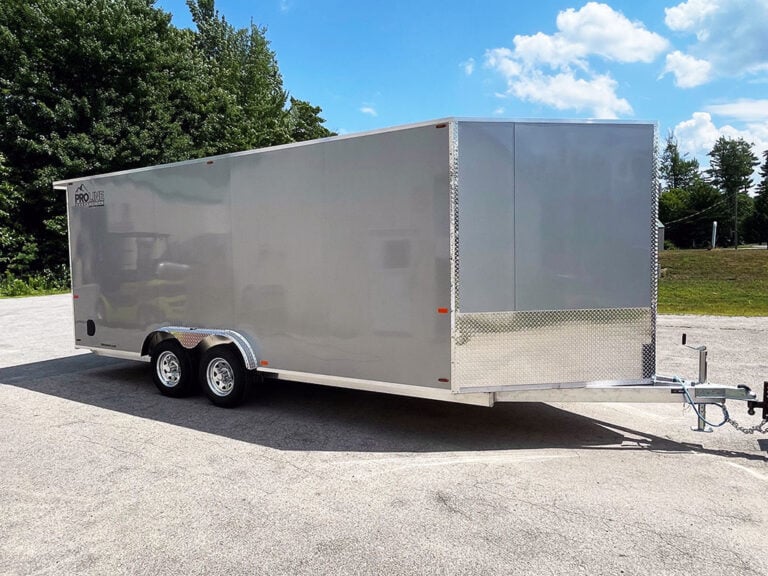

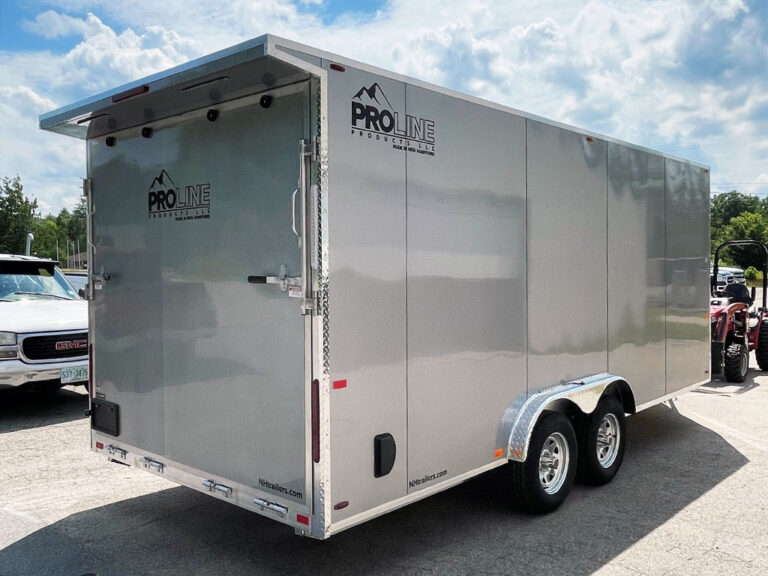

This is the 7.5′ wide version of our flagship 7′ wide snowmobile trailers. Still built on the same 15″ radial tires and mated to galvanized Dexter Torflex axles. Though they are a little wider these trailers actually sit lower to the ground compared to a 7′ wide trailer. Because of this they still provide great aerodynamics when towing to your next snowmobile destination. The extra width is perfect for cramming in gear or even when using as a multi-purpose trailer to use in the summer months for Side by Sides.

PROLine Products snowmobile trailers are loaded with standard features tailored to snowmobilers. Features such as our full length quick adjust floor rails welded to the trailer frame provide strength and flexibility when tying down your sleds. In addition both the front and rear ramp doors come standard with spring assists and a quality Ventline Pop-Up Roof Vent gives your snowmobiles and gear a chance to breathe. The cold weather 7 way trailer plug won’t harden up in those frigid temperatures. Additional options such as fuel doors, back up lights, or loading lights, along with dozens of others allow you to customize the trailer to your needs.

Pricing & Specs

ModelSNO 90-14SNO 90-16SNO 90-18SNO 90-20SNO 90-22
Factory Direct Price
6'1" Max Int Ht
$7,995$8,495$9,095$9,795$10,495
Factory Direct Price
6'6" Max Int Ht
$8,205$8,735$9,365$10,095$10,825
Interior Length13'11" + V15'11" + V17'11" + V19'11" + V21'11" + V
V-Nose Length54"
Interior Width90"
Interior Height5'6", 6'1", 6'6", 7', or 7'6" Options, Net Height Is Less
Overall Length20'9"22'9"24'9"26'9"28'9"
Overall Width102"
Overall Height99" (6'1" Max Interior Height)
Deck Height21"
Top of Ball / Ball Size17" / 2-5/16"
Curb Weight*2050#2200#2350#2500#2700#
GVWR7000#

Standard Features

ModelSNO 90-14SNO 90-16SNO 90-18SNO 90-20SNO 90-22
FrameAll Aluminum Tubular - 2"x5" Main Frame
AxlesTwo 3500# Galvanized Dexter Torflex Axles w/ EZ Lube Hubs
Brakes10" Electric Self Adjusting on Both Axles
TiresST205/75R15 LRC Radial TiresST205/75R15 LRD Radial Tires
WheelsGalvanized Wheels w/ Chrome Center Caps & Acorn Lug Nuts
Wheel Wells Dimensions69" W x 10.75" H x 4" D
Exterior Skin.030 Painted Aluminum Sheets - Screwless
24" Stoneguard on V-Nose
Wall/Roof StructureAll Aluminum Tubular - 16" On Center
Roof SkinSeamless Mill Finish Aluminum
Flooring3/4" GP DryMax High Performance Floor
Exterior LightsAll LED (Stop-Turn-Tail, Side Marker, Clearance, Plate Light)
Interior Lights33445
InteriorKickboard on Interior Walls (Wall studs above are exposed)
Tiedowns2 Quick-Adjust Floor Rails w/ Ski Tie Down Bars
Trailer DoorsFront & Rear Ramp Doors w/ Spring Assists & Snow-Flaps
32" x 68" Side Access Door w/ RV Lock
JackstandPedestal Mount Jackstand w/ Removable Foot
Rear Ramp Door Opening85" Wide
Ramp Door HingesAluminum w/ Grease Fittings
VentilationVentline Pop-Up Roof Vent
12V Power7 Way (CW)

Available Colors

Every PROLine trailer is available in 11 different solid colors at no additional charge for any one color. We also offer Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.

enclosed motorcycle trailer

White

trailer colors

Black

trailer color

Silver

Pewter Metallic

colors

Charcoal Metallic

Indigo Blue Metallic

Victory Red

Orange

Emerald Green Metallic

Brandywine

Yellow

Two-Tone +$200

Get A Custom Quote

Call us at 603-652-7337 or e-mail us to discuss the best trailer for your needs. We’d be happy to discuss our many different trailer models, options, and accessories to find the configuration that’s right for you. Once we know what you’re looking for we can put together a custom, itemized quote for you to review.
