Pictures shown with options
Trailer Highlights
90″ Interior Width
2″ x 5″ Main Frame
Dexter Torsion Axle
Galvanized Axle & Wheels
15″ Radial Tires
3/4” DryMax Flooring
2″ Thick 16″ On Center Roof
All LED Lighting
5’6″ & 6’1″ Heights Available

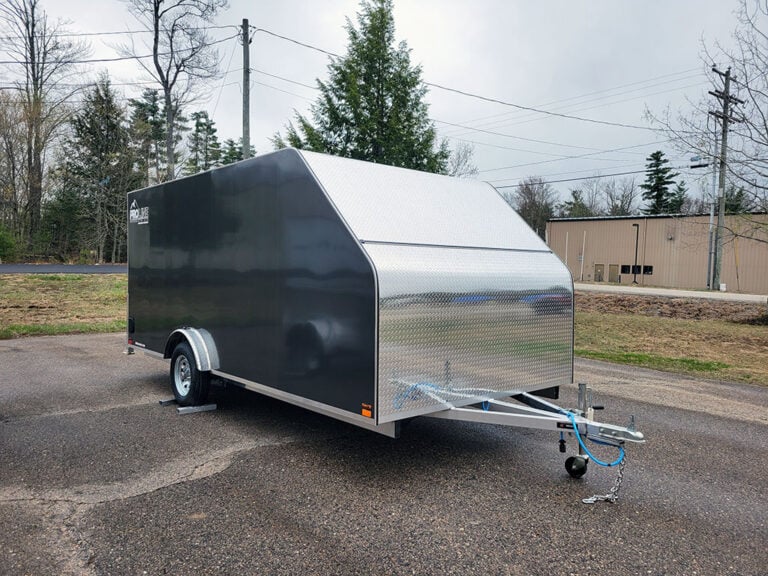

2 place inline hybrid snowmobile trailer now available in 90″ interior width! The extra 9″ in width allows for more breathing room for your snowmobiles at the expense of getting a small wheel well inside the trailer. This is a great way to haul two sleds and maintain a good aerodynamic profile with the big 15″ radial tires.
Pricing & Specs
| Model | IS 9016 | IS 9016T | IS 9018 |
|---|---|---|---|
| Factory Direct Price 5'6" Max Int Ht | $7,895 | $10,295 | $10,895 |
| Factory Direct Price 6'1" Max Int Ht | $8,055 | $10,455 | $11,075 |
| Interior Length | 15' 10" | 17'10" | |
| Interior Width | 90" | ||
| Between Wheel Wells | 83.5" | ||
| Interior Height | 5'6", or 6'1" Options, Net Height Is Less | ||
| Overall Length | 20' | 22' | |
| Overall Width | 102" | ||
| Overall Height | 92" | ||
| (5'6" Max Interior Height) | |||
| Deck Height | 21" | ||
| Top of Ball / Ball Size | 17" / 2" | ||
| Curb Weight* | 1400# | 1800# | 1900# |
| GVWR | 2990# | 6000# | 6000# |
Standard Features
| Model | IS 9016 | IS 9016T | IS 9018 |
|---|---|---|---|
| Frame | All Aluminum Tubular | ||
| 2"x5" Main Frame | Heavy Duty 2"x5" Frame | ||
| Axles | Galvanized Dexter Torflex w/ EZ Lube Hubs | ||
| (1) 3500# | (2) 3500# | ||
| Brakes | Option | 10" Electric on Both Axles | |
| Tires | 15" Radial (ST205/75R15 LRC) | ||
| 6 Year Tire Warranty w/ 2 Years Roadside Assistance | |||
| Wheels | Galvanized Wheels w/ Chrome Center Cap & Acorn Lug Nuts | ||
| Exterior Skin | .030 Painted Aluminum Sheets - Screwless Full Stoneguard Front |
||
| Wall/Roof Structure | All Aluminum Tubular - 16" On Center | ||
| Roof Skin | Seamless Mill Finish Aluminum | ||
| Flooring | 3/4" GP DryMax High Performance Floor | ||
| Exterior Lights | LED Stop-Turn-Tail, LED Side Marker, LED Clearance, LED Plate Light | ||
| Interior Lights | 3 | ||

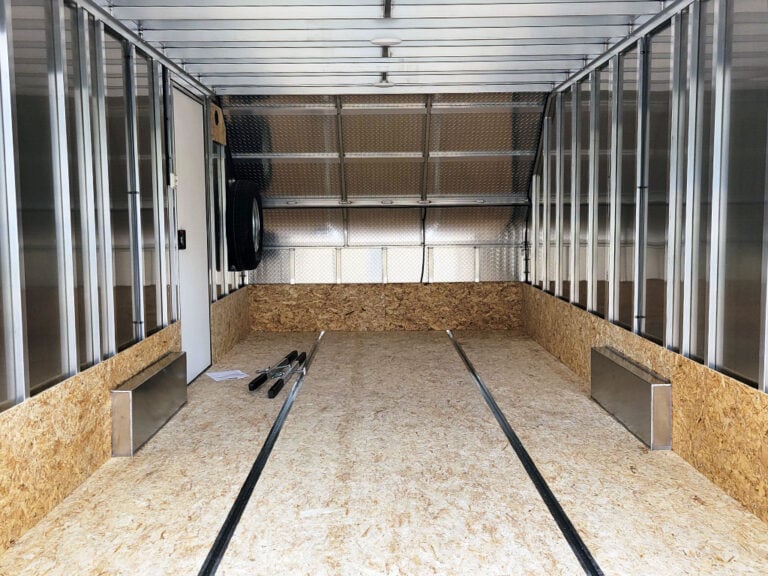

| Interior | 12" Kickboard on Interior Walls | ||
| Tiedowns | 2 Quick-Adjust Floor Rails w/ Ski Tie Down Bars | ||
| Trailer Doors | 85" Wide Rear Ramp Door w/ Spring Assist & Snow-Flap 32" x 68" Side Access Door w/ RV Lock |
||
| Ramp Door Hinges | Aluminum w/ Grease Fittings | ||
| Jackstand | Swivel Jackstand w/ Wheel | ||
| Ventilation | CHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2) | ||
| 12V Power | 4 Way | 7 Way (CW) | |
Available Colors
Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides. |
||||
 White |  Black |  Silver |  Pewter Metallic |  Charcoal Metallic |
 Red |  Orange |  Blue |  Yellow |  Two-Tone +$300 |
Dozens of Ways to Customize
Below you’ll find some common setups for trailers like this but we encourage all prospective customers to call us at 603-652-7337 or e-mail us to discuss the best snowmobile trailer and options for your needs. Once we know what you’re looking for we can put together a custom, itemized quote for you to review.
Popular Configurations
Primary
$480
Upgrade from Base Price- Spare Tire + Tire Wall Mount
- + Caliber Trax Grabbers on Ramp
- + Caliber Low Pro Wide Glides on Ramp
Plus
$670
Upgrade from Base Price- Includes Primary
- + Cold Weather 7 Way Plug
- + LED Backup Lights
- + Flex Glides at Ramp (4)
PRO
$885
Upgrade from Base Price- Includes Plus
- + LED Reverse Lights
- + LED Loading Light
- + Upgrade to Low Profile Grip Glides
Personalized
$Varies
Built with YOU in mind- Options can be added individually or to any of the previous packages
- A truly CUSTOMIZED trailer buying experience
