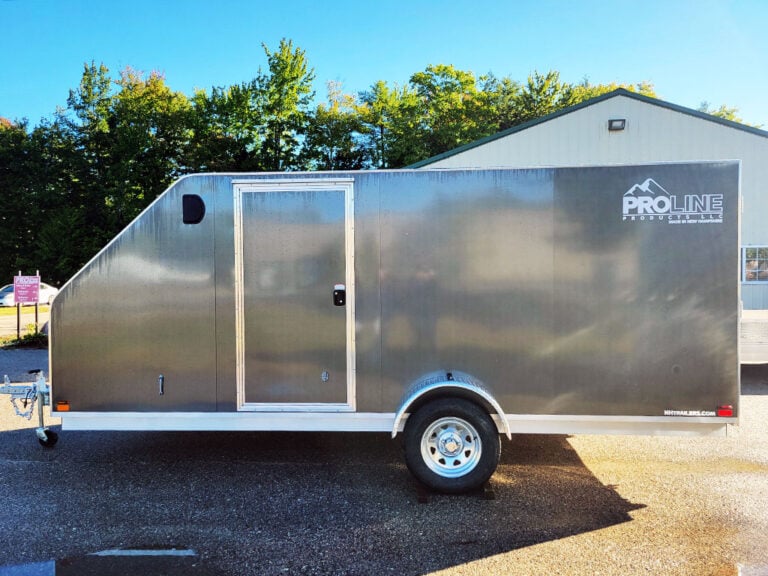

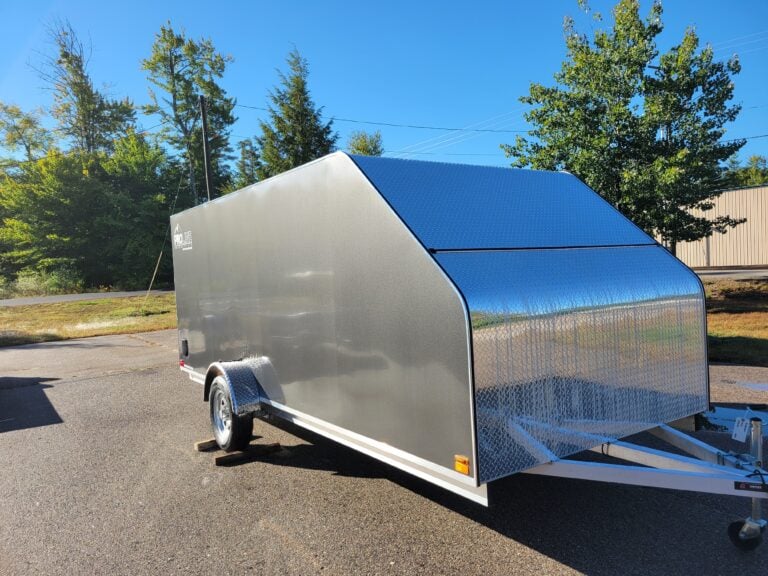

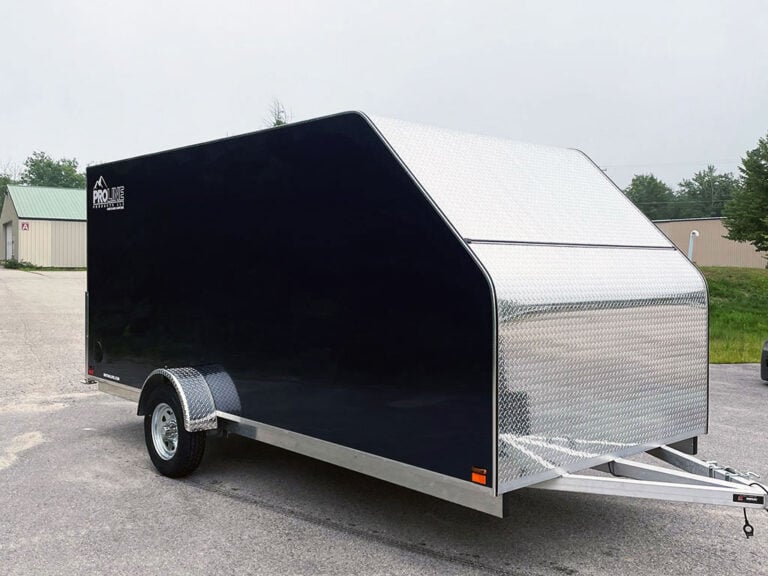

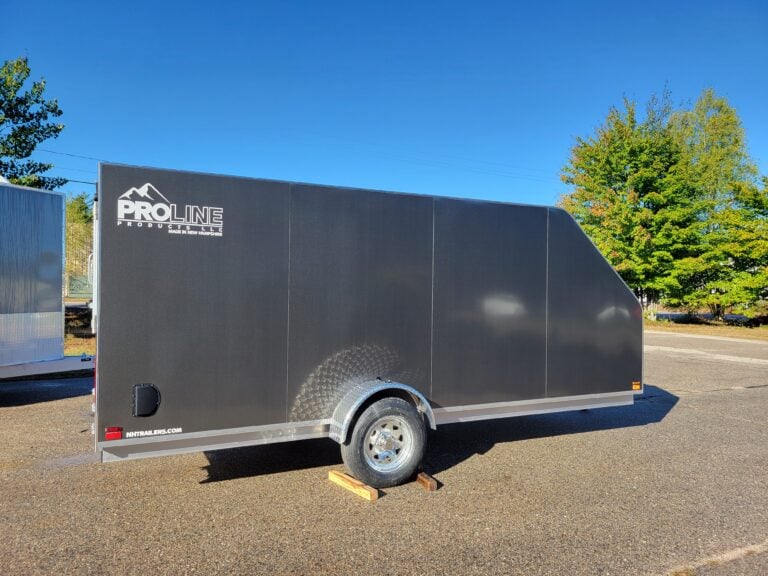

This 2 place inline snowmobile trailer may be the safest and easiest way to tow two snowmobiles. The inline 7′ wide trailer box means significantly reduced wind resistance compared to clamshell, hybrid, or similarly designed trailers. More importantly, this 2 place snowmobile trailer rides on large radial tires. With two snowmobiles staggered inside the 16′ long trailer, you can be confident you’ll be starting your next trip on the right foot.
This two place snowmobile trailer is built from the ground up to handle whatever the winter roads throw at you. Starting on galvanized Dexter Torflex Axle(s) with E-Z Lube hubs, big radial tires on galvanized wheels, and an extremely rugged 5″ mainframe. Inside the trailer, you’ll find a 3/4″ flooring, two full-length tiedown rails that are welded to the trailer frame, and multiple LED interior lights so you’re not left in the dark.
The roof of these snowmobile trailers consists of a single sheet of mill finish aluminum adhered down to the 2″ thick roof cross members, framed on 16″ centers. All this adds up to a trailer roof stronger than any other of its kind. In the middle of the roof you’ll find a Ventline pop-up roof vent for ventilation, properly framed for and sealed to ensure no leaks. Standard LED trailer lights on the outside shine bright for improved visibility and the screw-less exterior painted aluminum sheets will stay looking sharp for years.
| Model | IS 716 | IS 716X (2.2k Tandem Axle) | IS 716T (3.5k Tandem Axle) |
|---|---|---|---|
| Factory Direct Price 5'6" Max Int Ht | $7,595 | $8,395 | $9,595 |
| Factory Direct Price 6'1" Max Int Ht | $7,835 | $8,635 | $9,835 |
| Interior Length | 15' 10" | ||
| Interior Width | 81" | ||
| Interior Height | 5'6", or 6'1" Options, Net Height Is Less | ||
| Overall Length | 20' | ||
| Overall Width | 102" | ||
| Overall Height | 94" | 93" | 94" |
| (5'6" Max Interior Height) | |||
| Deck Height | 23" | 22" | 23" |
| Top of Ball / Ball Size | 20" / 2" | 19" / 2" | 20" / 2" |
| Curb Weight* | 1300# | 1425# | 1750# |
| GVWR | 2990# | 2990# | 6000# |
| Note | Other sizes available. Call for details. | ||
| Model | IS 716 | IS 716X (2.2k Tandem Axle) | IS 716T (3.5k Tandem Axle) |
|---|---|---|---|
| Frame | All Aluminum Tubular | ||
| 2"x5" Main Frame | Heavy Duty 2"x5" Frame | ||
| Axles | Galvanized Dexter Torflex w/ EZ Lube Hubs | ||
| (1) 3500# | (2) 2200# | (2) 3500# | |
| Brakes | Option | Not Available | 10" Electric on Both Axles |
| Tires | 15" Radial (ST205/75R15 LRC) | 13" Radial (ST185/80R13 LRC) | 15" Radial (ST205/75R15 LRC) |
| 6 Year Tire Warranty w/ 4 Years Roadside Assistance | |||
| Wheels | Galvanized Wheels w/ Chrome Center Cap & Acorn Lug Nuts | ||
| Exterior Skin | .030 Painted Aluminum Sheets - Screwless Full Stoneguard Front |
||
| Wall/Roof Structure | All Aluminum Tubular - 16" On Center | ||
| Roof Skin | Seamless Mill Finish Aluminum | ||
| Flooring | 3/4" GP DryMax High Performance Floor | ||
| Exterior Lights | LED Stop-Turn-Tail, LED Side Marker, LED Clearance, LED Plate Light | ||
| Interior Lights | 3 | ||
| Interior | 12" Kickboard on Interior Walls | ||
| Tiedowns | 2 Quick-Adjust Floor Rails w/ Ski Tie Down Bars | ||
| Trailer Doors | 76" Wide Rear Ramp Door w/ Spring Assist & Snow-Flap 32" x 68" Side Access Door w/ RV Lock |
||
| Ramp Door Hinges | Aluminum w/ Grease Fittings | ||
| Jackstand | Swivel Jackstand w/ Wheel | ||
| Ventilation | CHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2) | ||
| 12V Power | 4 Way | 4 Way | 7 Way (CW) |
Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides. |
||
 |  | ![trailer color](https://nhtrailers.com/wp-content/uploads/2023/06/TrailerColor-Silver.jpg") |
 |  |  |
 |  |  |
 |  | |
SKU-Canopy
Add to cart
SKU-STS15
Add to cart
SKU-TWM
Add to cart
SKU-AWUG15
Select options This product has multiple variants. The options may be chosen on the product page
SKU-PLUG-7WayCold10
Select options This product has multiple variants. The options may be chosen on the product page
SKU-110V-Simple
Select options This product has multiple variants. The options may be chosen on the product page
SKU-QADR
Add to cart
SKU-STP-SD
Select options This product has multiple variants. The options may be chosen on the product page
SKU-LED-IntAdd
Add to cart
SKU-LT-SwitchDimmer
Add to cart
SKU-RoofRake-BigRig16
Add to cart
SKU-LED-Ghost-
Select options This product has multiple variants. The options may be chosen on the product page
SKU-LED-BULit
Add to cartOur aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.
A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.
Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.
Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
To Get A Custom Trailer Quote Today!
