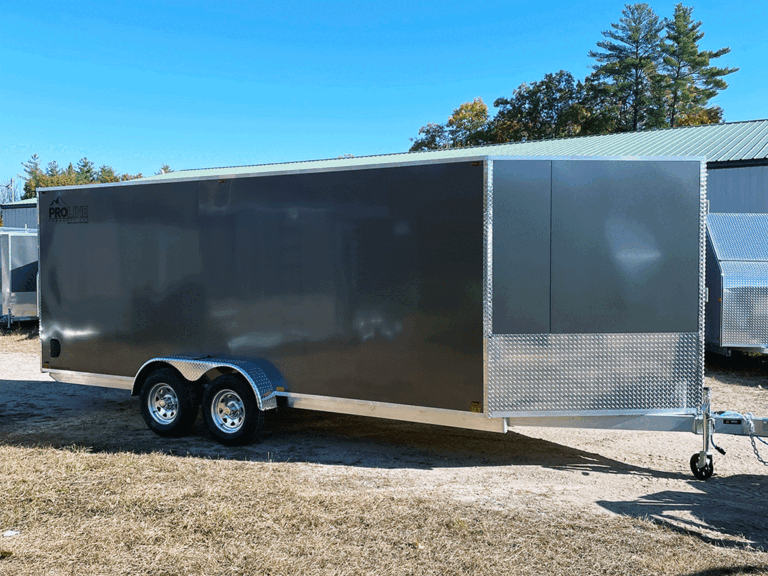

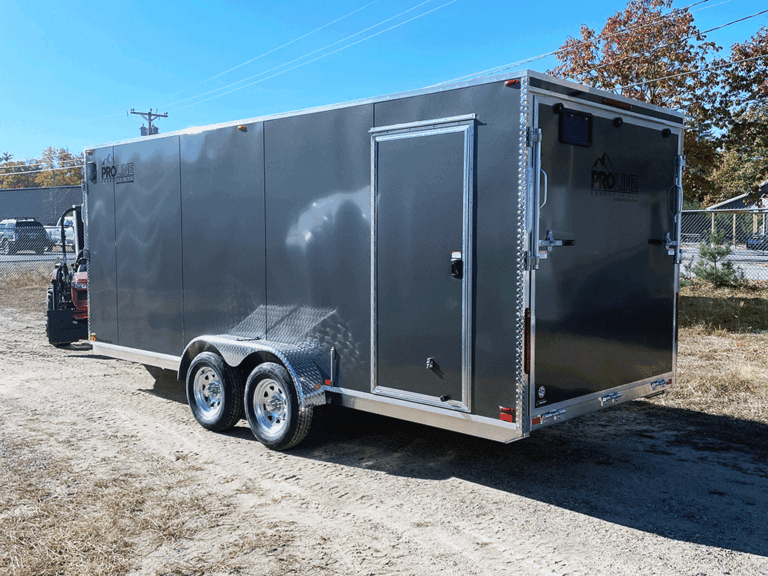

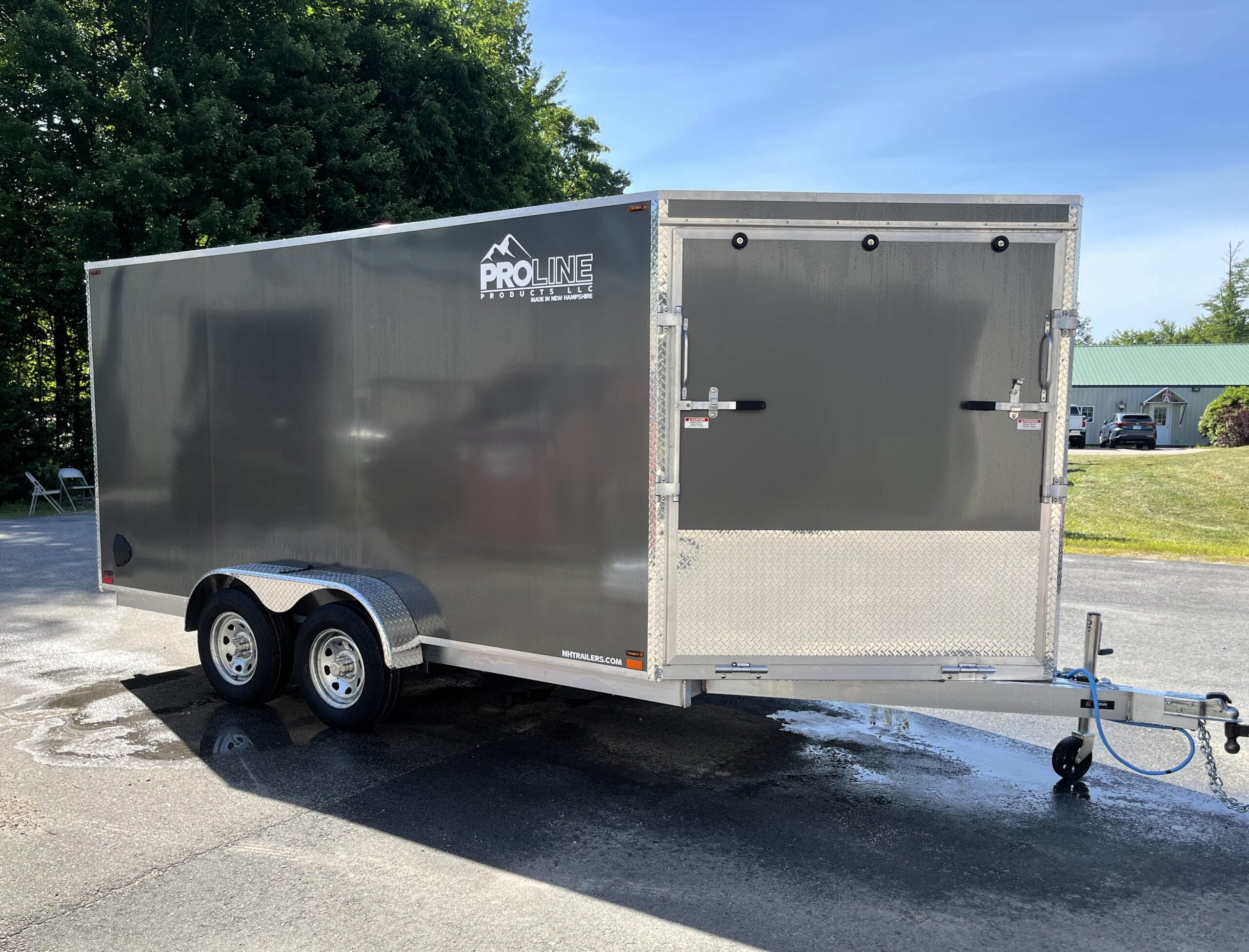

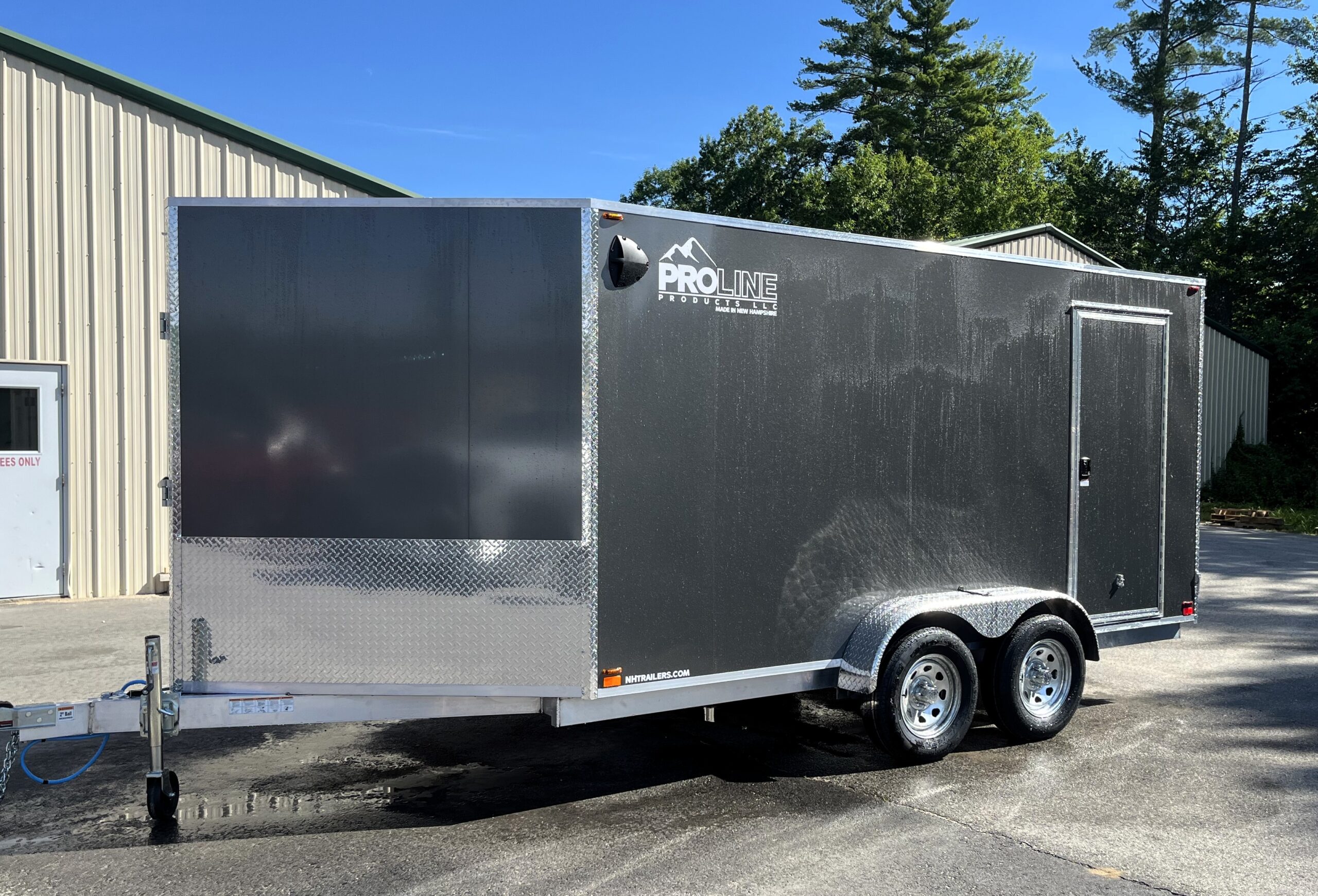

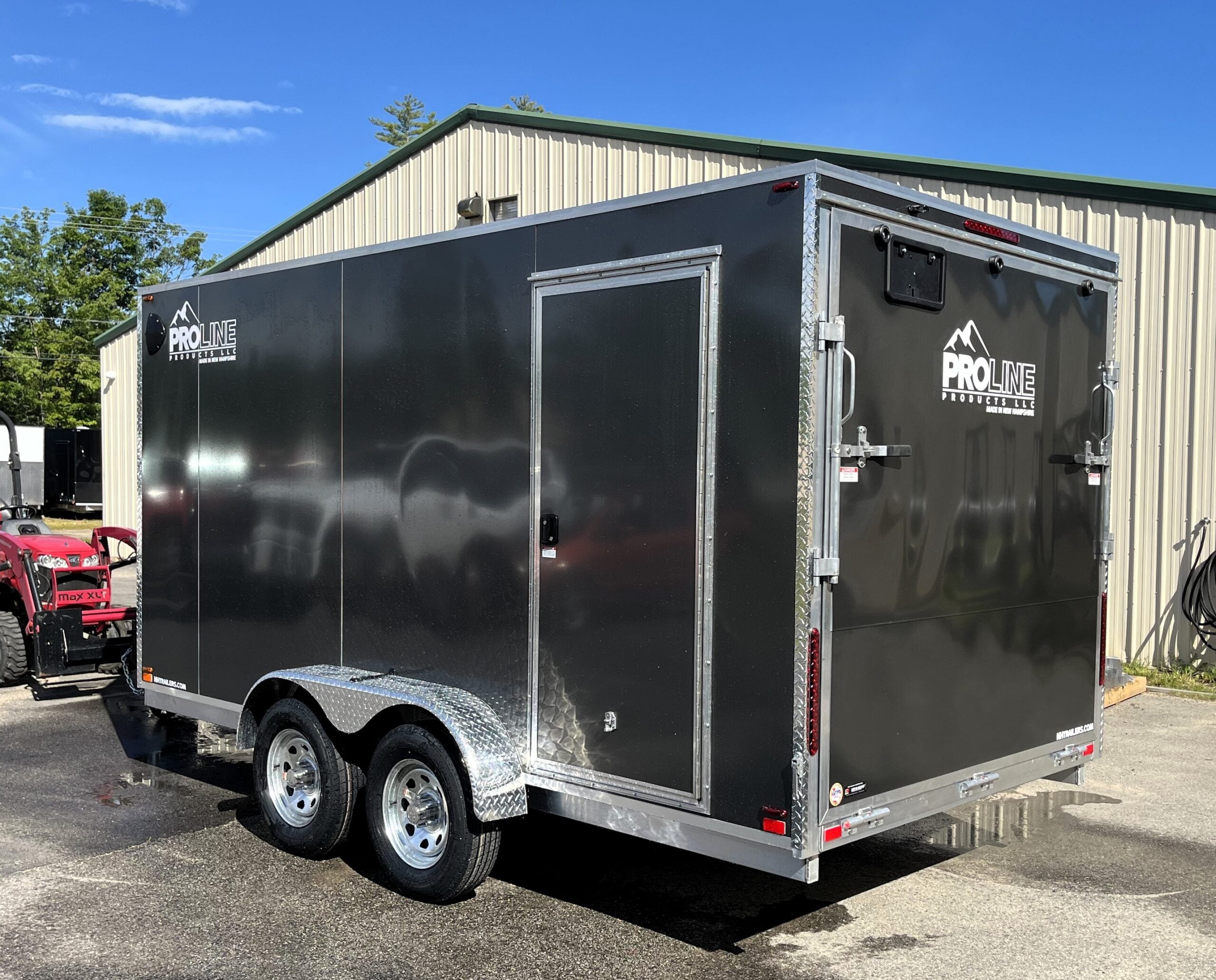

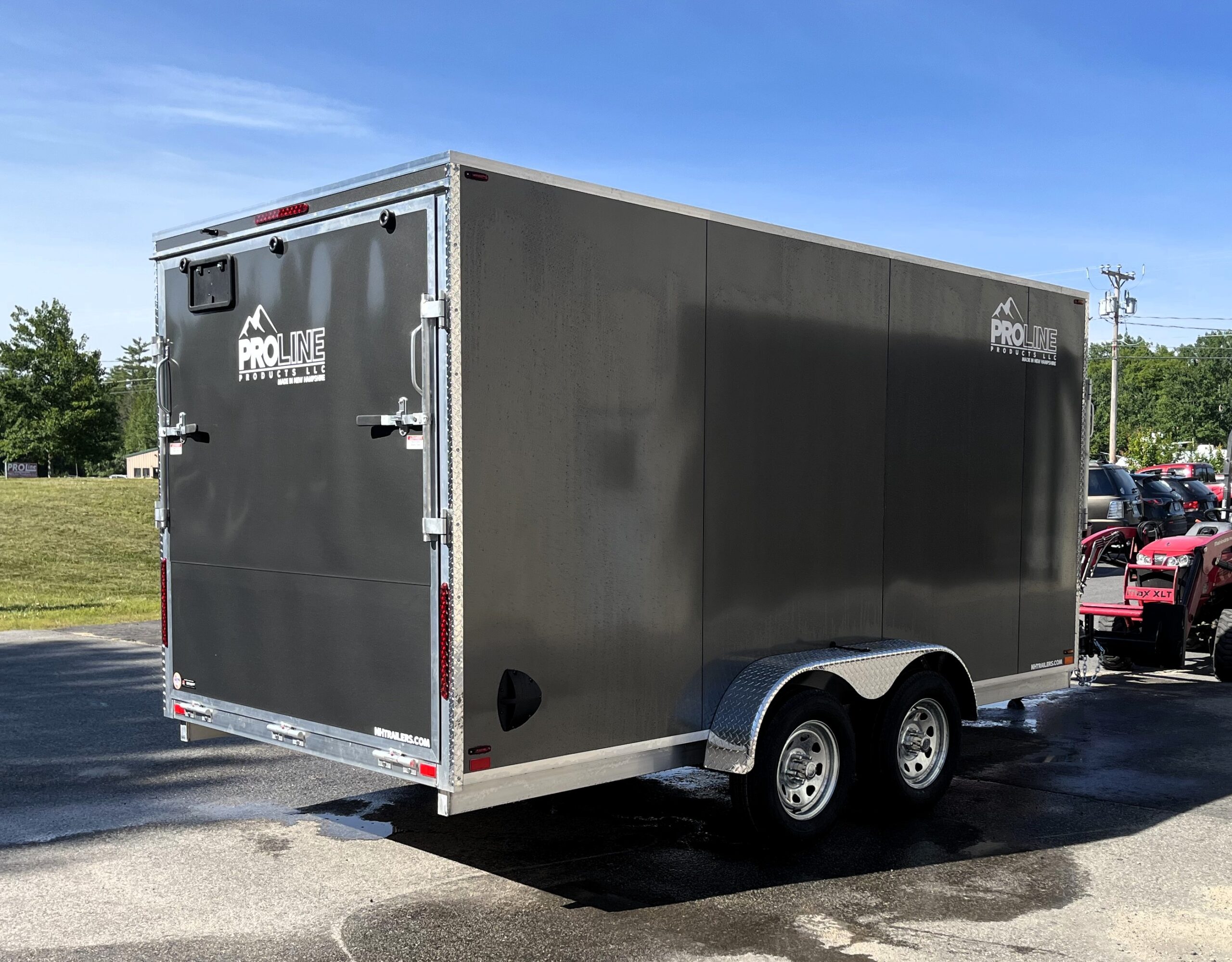

Pictures shown with options

Trailer Highlights

Aerodynamic 7′ Wide Box

Galv Dexter Torsion Axles

10″ Brakes on Both Axles

15″ Radial Tires

3/4” DryMax Flooring

2″ Thick 16″ On Center Roof

All LED Lighting

5’6″-7′ Heights Available

Our 7′ wide V-nose snowmobile trailer is perfect for hauling multiple snowmobiles long distances to chase the snow. Due to the narrow 7′ wide trailer box, combined with a steep 54″ V-nose and lower deck height, these v-nose snowmobile trailers have greatly improved aerodynamics compared to wider trailers. The 15″ radial tires rotate slower therefore run cooler and last longer. All of our trailers are built on galvanized Dexter Torflex axles, the smoothest riding axles in the trailer industry.

Quality axles and tires get us started but we take over from there with a rugged, all aluminum frame. Our wall studs are on 16″ centers and our roofs are truly designed for a snow load; 2″ thick tubes on 16″ centers. As you can see, all of our trailers come loaded with standard features but are also customizable with dozens of additional options. Give us a call to discuss the perfect snowmobile trailer for your needs.

Have motorycles as well? Check out our Multi-Sport Version of the SNO7!

Pricing & Specs

ModelSNO 714SNO 716SNO 718SNO 720SNO 722SNO 724
Factory Direct Price
6'1" Max Int Ht
$10,995
$11,495
$12,295
$12,795
$13,395
$14,195
# Snowmobiles
22-333-444
Interior Length13' 11" box + V15' 11" box + V17' 11" box + V19' 11" box + V21 11" box + V23' 11" box + V
V-Nose Length54"
Interior Width
81"
Interior Height5'6", 6'1", 6'6", or 7' Options, Net Height Is Less
Overall Length21' 2"23' 2"25' 2"27' 2"29' 2"31' 2"
Overall Width
102"
Overall Height101" (6'1" Max Interior Height)
Deck Height
23"
Top of Ball / Ball Size
20" / 2"
Curb Weight1950 lbs2075 lbs2225 lbs2300 lbs2400 lbs2650 lbs
GVWR6000 lbs6000 lbs7000 lbs7000 lbs7000 lbs7000 lbs

Standard Features

ModelSNO 714SNO 716SNO 718SNO 720SNO 722SNO 724
FrameAll Aluminum Tubular - 2" x 5" Main Frame
AxlesTwo 3.5k# Galvanized Dexter Torflex w/ EZ Lube Hubs
Brakes10" Electric Self Adjusting on All Axles
TiresST205/75R15 LRC TiresST205/75R15 LRD Tires
WheelsGalvanized Wheels w/ Chrome Center Cap & Chrome Lug Nuts
Exterior Skin.030 Painted Aluminum Sheets - Screwless
24" Aluminum Stoneguard on V-Nose
Wall/Roof StructureAll Aluminum Tubular - 16" On Center
Roof SkinSeamless Mill Finish Aluminum
Flooring3/4" GP DryMax High Performance Floor
Exterior LightsLED Stop-Turn-Tail, LED Side Marker, LED Clearance, LED Plate Light
Interior Lights334455
Interior16" Kickboard on Interior Walls

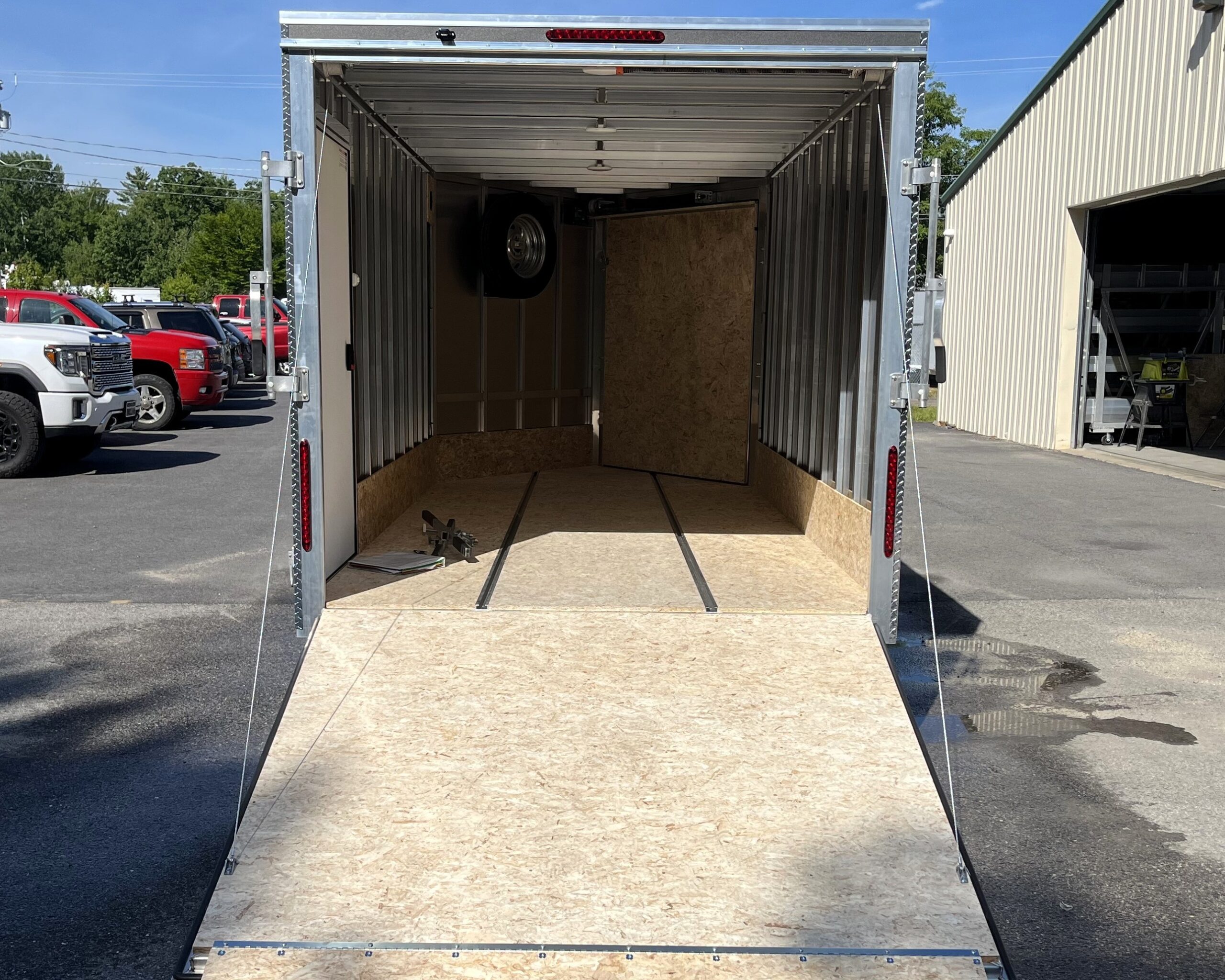

Tiedowns2 Quick-Adjust Floor Rails w/ Ski Tie Down Bars
Trailer DoorsFront & Rear Ramp Doors w/ Spring Assists & Snow-Flaps
32" x 68" Side Access Door w/ RV Lock
Ramp Doors76" Wide Rear - 63" Wide Front
Ramp Door HingesAluminum w/ Grease Fittings
JackstandSwivel Jackstand w/ Wheel
VentilationCHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2)
12V Power7 Way (CW)

Loading Diagrams

SNO714 Loading Diagram

2 place snowmobile trailer loading diagram

SNO718 Loading Diagram

3 place snowmobile trailer loading diagram

SNO722 Loading Diagram

Available Colors

Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.

enclosed motorcycle trailer

White

trailer colors

Black

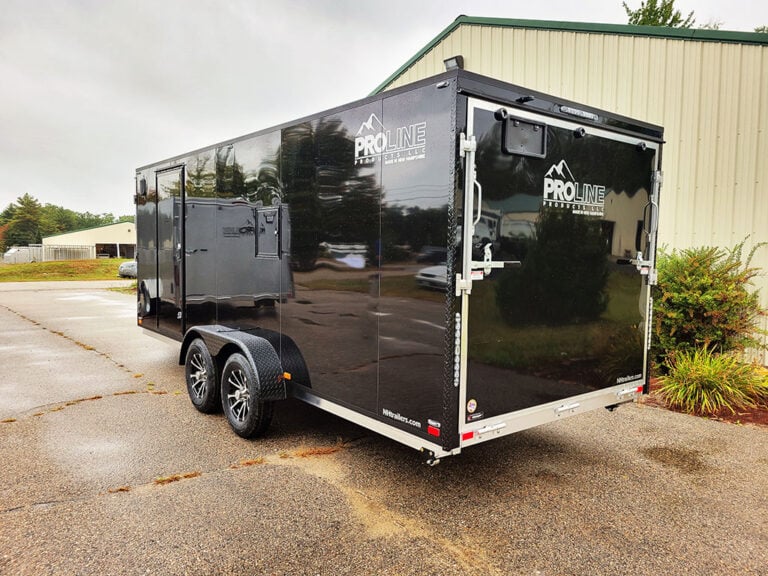

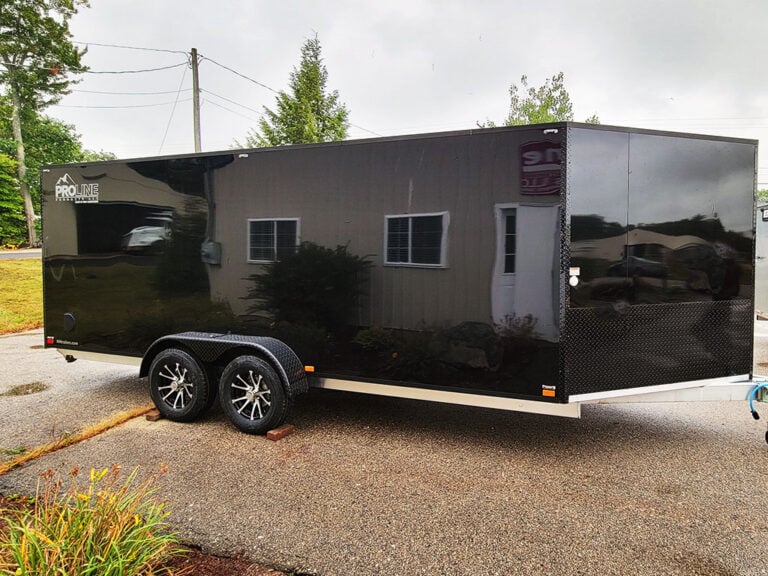

trailer color

Silver

Pewter Metallic

colors

Charcoal Metallic

Red

Orange

Blue

Yellow

Two-Tone +$300

Get A Custom Quote

Call us at 603-652-7337 or e-mail us to discuss the best snowmobile trailer for your needs. We’d be happy to discuss our many different trailer models, options, and accessories to find the configuration that’s right for you. Once we know what you’re looking for we can put together a custom, itemized quote for you to review.
