5' Wide Single Axle Motorcycle Trailer

the Superior Strength & Style of Our 5' Wide Motorcycle Trailers.

This enclosed aluminum motorcycle trailer is ready to help you check the Myrtle Beach, Daytona, and Sturgis Motorcycle Rallies off your bucket list. Built on a rugged 2″ x 5″ mainframe on a Dexter Torflex axle with 15″ radial tires this is perfect for cross-country touring! Full-size rear ramp door with spring-assist, side door with RV lock, pop-up roof vent, LED trailer lights, and finished white interior are all standard. Pick out your wheel chock of choice to work with our Adjustable Tie-down System and hit the road.

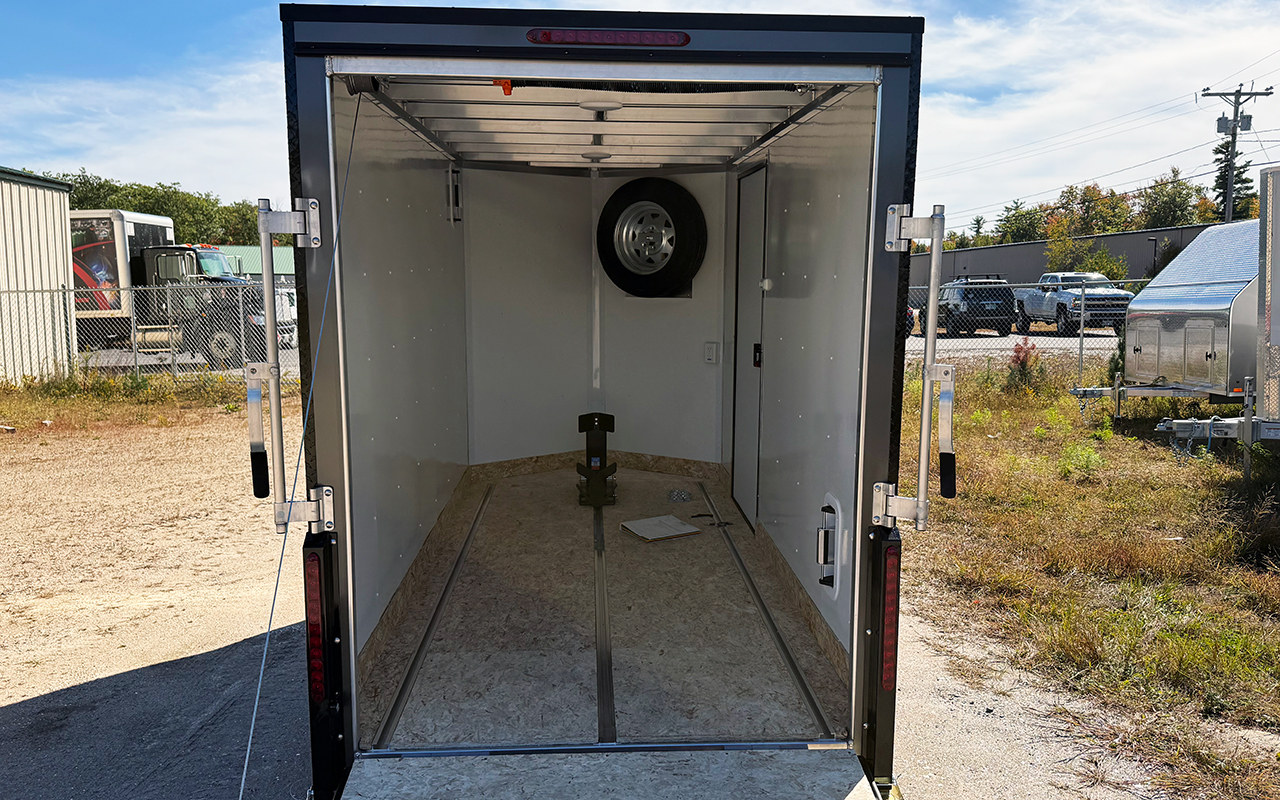

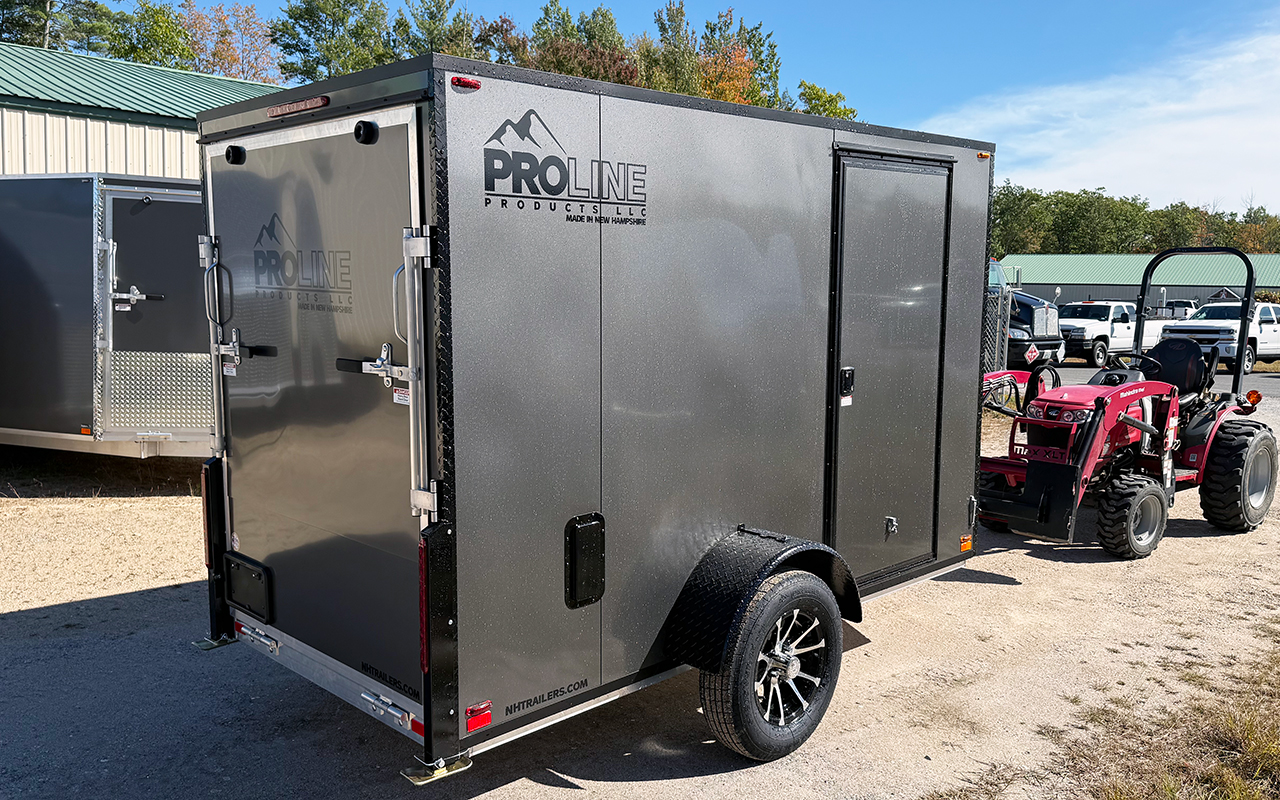

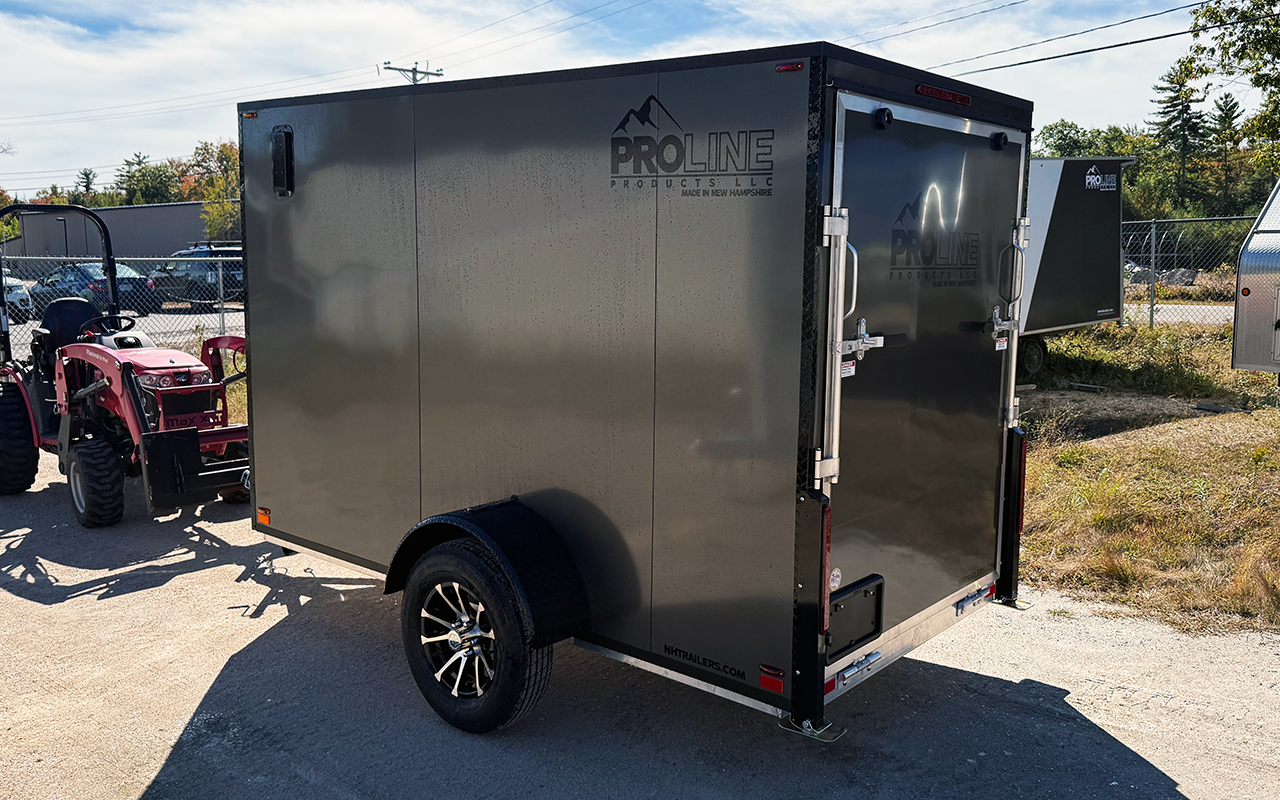

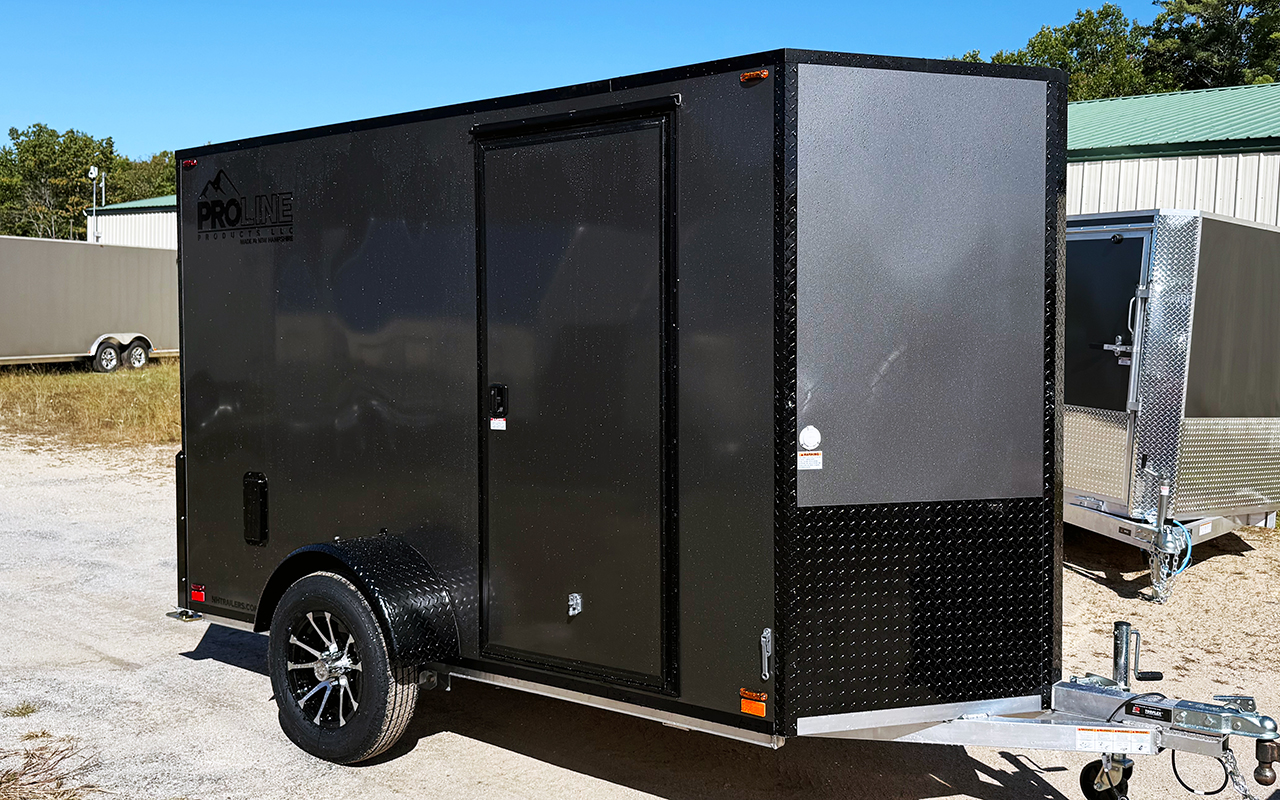

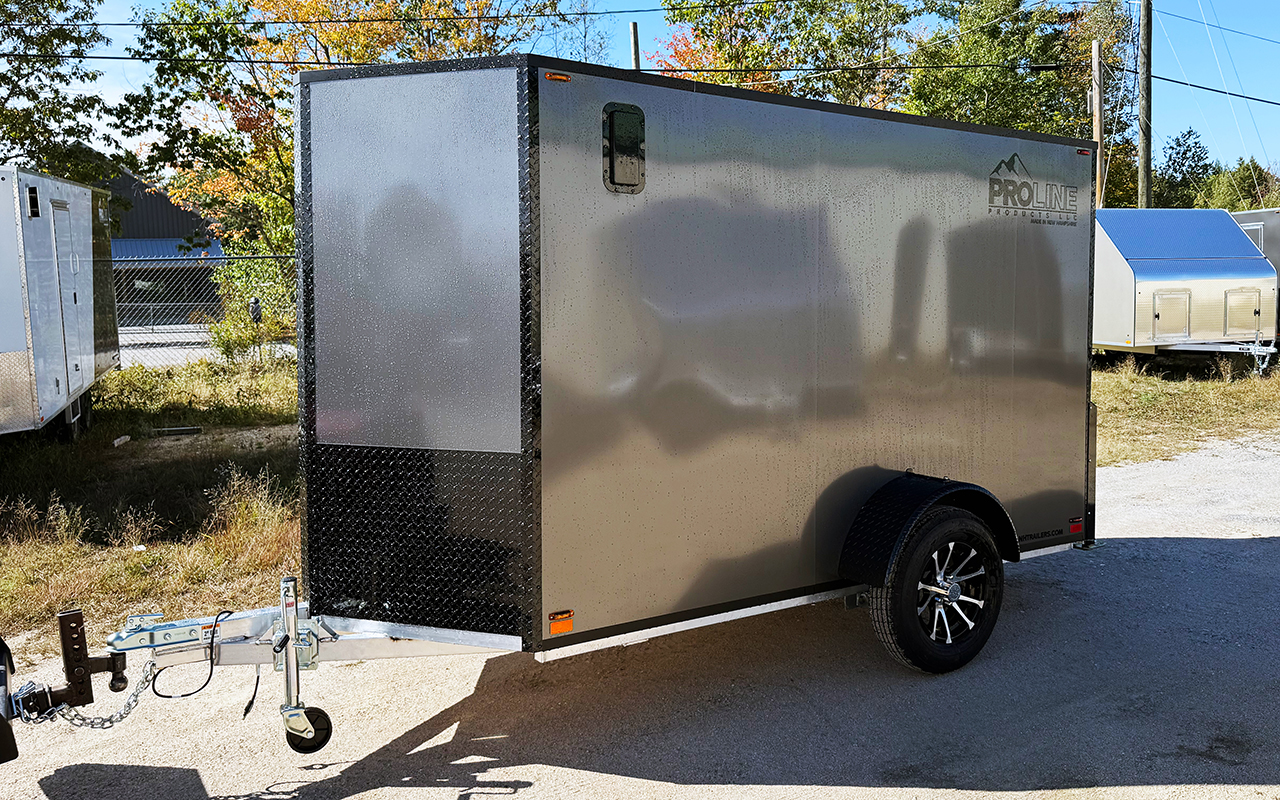

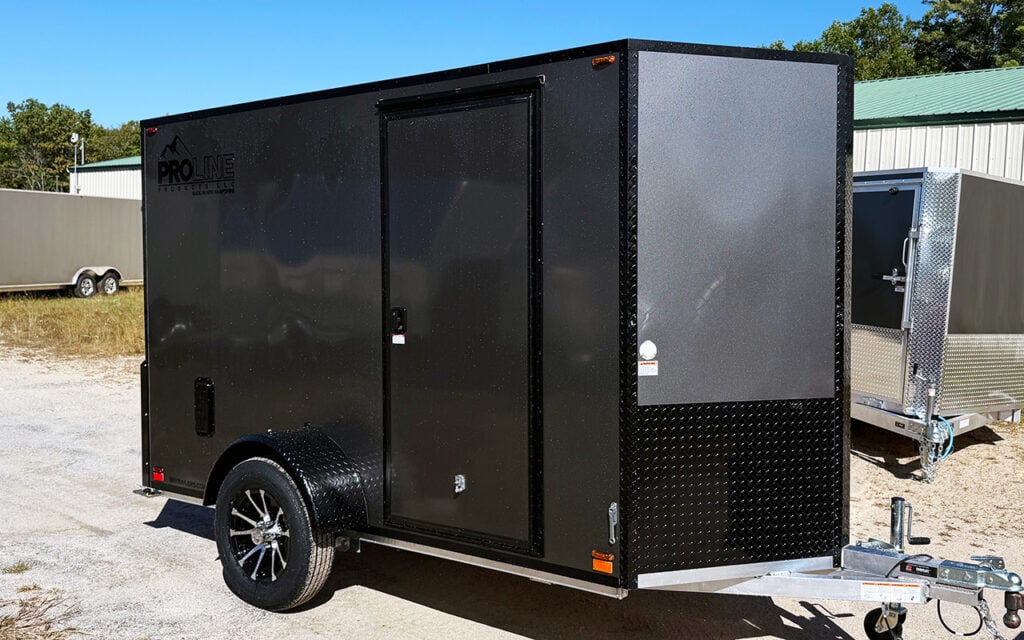

IMG_1168-(1)
IMG_1169-(1)
IMG_1170-(1)
IMG_1171-(1)
IMG_1172-(1)

Pictures may include upgrades or optional accessories.

  • Lower Deck Heights For Easier Loading
  • Dexter Torsion Axles To Reduce Bumps
  • Adjustable Tie Downs for Ultimate Versatility
  • White FRP Interior Walls For Clean Finish
  • 15" Radial Tires That Run Cooler & Last Longer
  • 2"x5" Aluminum Tubular Main Frame
Let's Talk Trailers
Get A Quote

ModelMOT 508MOT 510MOT 512
Factory Direct Price
6'1" Max Int Ht		 $6,395 $6,995
 $7,695
Interior Length7'11" box + 20" V-nose9'11" box + 20" V-nose11'11" box + 20" V-Nose
Interior Width57"
Interior Height5'6", 6'1", or 6'6" Options, Net Height Is Less
Overall Length11'7"13'7"15'7"
Overall Width82"
Overall Height96" (6'1" Max Interior Height)
Deck Height18"
Top of Ball / Ball Size17" / 2"
Curb Weight*825#900#1000#
GVWR2990#
NoteOther sizes available. Call for details.

ModelALL MODELS
FrameAll Aluminum Tubular - 2"x5" Main Frame
Axles3.5k Galvanized Dexter Torflex™ w/ EZ Lube Hubs
BrakesOPTION
Tires15" Radial Tires (ST205/75R15 LRC)
WheelsGalvanized Wheels w/ Chrome Center Caps & Acorn Lug Nuts
Exterior Skin.030" Painted Aluminum - Screwless
24" Stoneguard on V-Nose
Wall/Roof StructureAll Aluminum Tubular - 16" On Center
Roof SkinSeamless Mill Finish Aluminum
Flooring3/4" GP DryMax High Performance Floor
Exterior LightsAll LED (Stop-Turn-Tail, Side Marker, Clearance, Plate Light)
Interior Lights2
InteriorWhite Vinyl Finished Interior Walls
Tiedowns3 Quick-Adjust Floor Rails
Trailer Doors52" Wide Rear Ramp Door w/ Spring Assist
32" x 68" Side Access Door w/ RV Lock
Ramp Door HingesAluminum w/ Grease Fittings
JackstandSwivel Jackstand w/ Wheel
VentilationCHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2)
12V Power4 Way

Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.
enclosed motorcycle trailertrailer colorstrailer color
5' Wide Single Axle Motorcycle Trailer 1colors5' Wide Single Axle Motorcycle Trailer 2
5' Wide Single Axle Motorcycle Trailer 35' Wide Single Axle Motorcycle Trailer 45' Wide Single Axle Motorcycle Trailer 5
5' Wide Single Axle Motorcycle Trailer 65' Wide Single Axle Motorcycle Trailer 7

Popular Options listed below. Others may be available, see Options Page for more.
Please note, not all options available on all models, call for details.

Rugged Aluminum Frame

Our aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.

Quality Trailer Parts

A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.

2.5x Stronger Roof

Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.

Attention To Detail

Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
