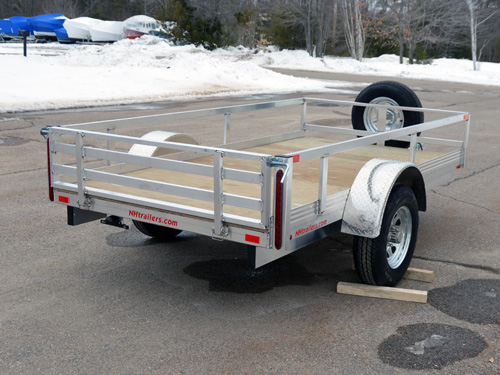

5' Wide Open Aluminum Trailer

the Superior Strength & Style of Our 5' Wide Open Utility Trailer.

A rugged yet lightweight aluminum frame mated to a Dexter Torflex axle means this aluminum utility trailer is ready for a good days work. Standard features include a 14″ tall x 59″ wide easily removable rear tailgate, LED lights, 14″ radial tires on galvanized wheels, aluminum treadplate fenders, and Marinetech 5/8″decking. Additionally, as with any trailer from PROLine a fully welded, all aluminum construction. Perfect as an ATV or UTV trailer when adding the rear ramp option!


Swipe To See More Images

Let's Talk Trailers

ModelUTIL 508UTIL 510UTIL 512UTIL 514
Factory Direct Price
2990# GVWR
Interior Length7'11"9'11"11'11"13'11"
Interior Width5912"
Overall Length
11' 8"13' 8"15' 8"17' 8"
Overall Width78"
Deck Height22 12"
Top of Ball / Ball Size20" / 2"
Curb Weight*470 lbs510 lbs540 lbs580 lbs

FrameAll Aluminum Tubular - 2"x5" Main Frame
Axles3500# Dexter Torflex™ w/ EZ Lube Hubs
BrakesNot Available
Tires/WheelsST205/75R14 LRC Tires on Galvanized Wheels
Flooring5/8" Marinetech Decking
Exterior LightsLED Stop-Turn-Tail, LED Side Marker, Inc. Plate Light
TiedownsS-Hook Holes in Sides
OPTION: Quick Adjust Floor Rails or Recessed D-Rings
Trailer Doors59"w x 14" h Rear Gate
JackstandSwivel Jackstand w/ Wheel
Rear Gate59" Wide x 14" High / Rear Ramp Optional Upgrade
12 V Power4 Way Flat

Popular Options listed below. Others may be available, see Options Page for more.
Please note, not all options available on all models, call for details.

Rugged Aluminum Frame

Our aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.

Quality Trailer Parts

A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.

2.5x Stronger Roof

Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.

Attention To Detail

Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
