80" Wide Enclosed Motorcycle Trailer

the Superior Strength & Style of Our 80" Wide Motorcycle Trailer.

Our 80″ wide enclosed motorcycle trailer series are one of our flagship aluminum trailers. Purpose built from the ground up to be a better towing, incredibly stable, and supremely versatile way of hauling motorcycles. The 80″ wide trailer box follows effortlessly behind the tow vehicle and allows us to get a low 18″ deck height.

Interested in other sizes? We offer 5′ wide single axle motorcycle hauler, 6′ wide motorcycle trailer, and 7.5′ wide trailer.

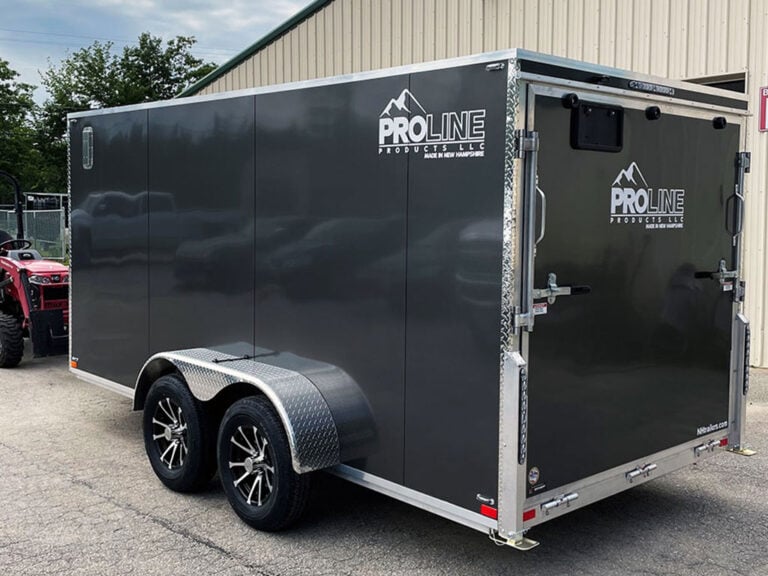

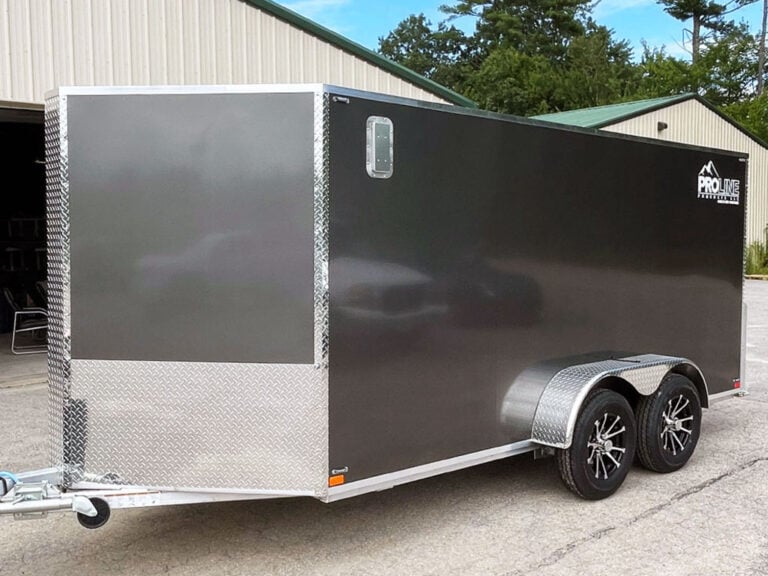

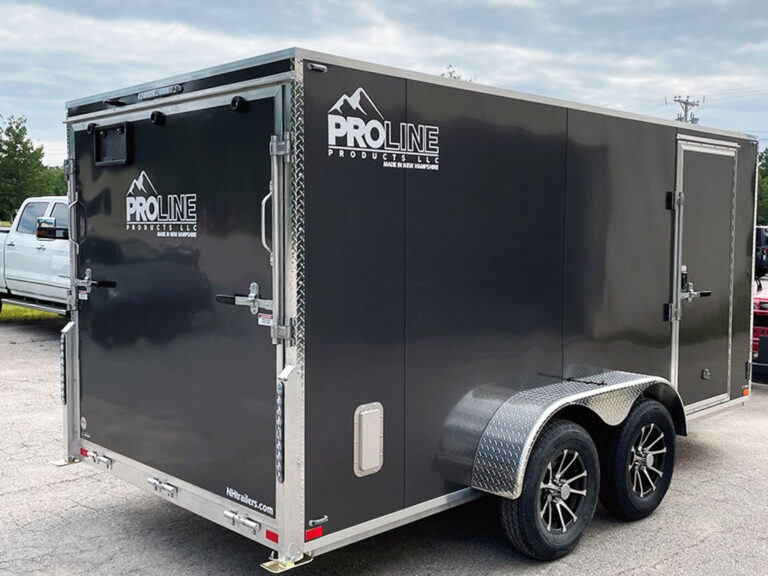

MOT80-14
MOT80-14
MOT80-14
MOT80-14
MOT80-14
Pictures may include upgrades or optional accessories.

This lower deck height gives us improved aerodynamics as well as an easy grade into the ramp door of your enclosed motorcycle trailer. Inside this motorcycle trailer you’ll be welcomed by five rows of our fully adjustable Quick-Adjust Tie Down Rails, that are welded right to the trailer frame. These tie down rails allow for total flexibility in how you secure your motorcycles and your gear. Have just one bike on the next trip? Put it right in the middle. Two bikes? No problem at all, stagger the handlebars slightly and head off on your next road trip.

The structure and overall design of this motorcycle trailer are what truly sets itself apart. We start with a very rigid all-aluminum tubular frame and bolt on galvanized torsion with EZ Lube Hubs.

Quality 15″ radial tires are used to keep running cool even on the hot summer days on your trip to the Sturgis rally.

We use a 3/4″ flooring to properly support the weight of your bike and overhead are 2″ thick roof cross members on 16″ centers. This means not only will your enclosed motorcycle trailer be ready for your bikes in the summer but it’ll be perfectly fine as the snow builds up on her over the winter, with your bikes nestled carefully inside.

  • Lower Deck Heights For Easier Loading
  • Torsion Axles To Reduce Bumps
  • Adjustable Tie Downs for Ultimate Versatility
  • 3/8" Interior Wall Paneling
  • 15" Radial Tires That Run Cooler & Last Longer
  • 2"x5" Aluminum Tubular Main Frame
Let's Talk Trailers
Get A Quote

ModelMOT 80-12MOT 80-12TMOT 80-14MOT 80-16
Factory Direct Price
6'1" Max Int Ht		$8,495
 $10,495

 $11,195
 $11,895
Interior Length11'11" box + 35" V11'11" box + 35" V13'11" box + 35" V15'11" box + 35" V
Interior Width77"
Interior Height5'6", 6'1", 6'6", 7' Options, Net Height Is Less
Overall Length17'5"17'5"19'5"21'5"
Overall Width102"
Overall Height96" (6'1" Max Interior Height)
Deck Height18 "
Top of Ball / Ball Size17" / 2"
Curb Weight*1295#1700#1800#1925#
GVWR2990#6000#6000#6000#
NoteOther sizes available. Call for details.

ModelMOT 80-12MOT 80-12TMOT 80-14MOT 80-16
FrameAll Aluminum Tubular , 2"x5" Main Frame
Axles3.5k Galvanized Torsion w/ EZ Lube Hubs
Axle Qty1222
BrakesOption10" Electric Self Adjusting on Both Axles
Tires/WheelsST205/75R15 LRC Tires on Galvanized Wheel
Exterior Skin.030 Painted Aluminum - Screwless
24" Stoneguard on V-Nose
Wall/Roof StructureAll Aluminum Tubular - 16" On Center
Roof SkinSeamless Mill Finish Aluminum
Flooring3/4" GP DryMax High Performance Floor
Exterior LightsLED Stop-Turn-Tail, LED Side marker, and LED Clearance
Interior Lights2233
Interior3/8" GP Drymax Finished Interior Walls
Tiedowns5 Quick-Adjust Floor Rails
Trailer Doors72" Wide Rear Ramp Door w/ Spring Assist & Transition Flap
32" x 68" Side Access Door w/ RV Lock
Ramp Door HingesAluminum w/ Grease Fittings
JackstandSwivel Jackstand w/ Wheel
VentilationCHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2)
12V Power4 Way7 Way7 Way7 Way

Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.
enclosed motorcycle trailertrailer colorstrailer colorAluminum Enclosed Motorcycle Trailer & Hauler 1
colorsAluminum Enclosed Motorcycle Trailer & Hauler 2Aluminum Enclosed Motorcycle Trailer & Hauler 3Aluminum Enclosed Motorcycle Trailer & Hauler 4
Aluminum Enclosed Motorcycle Trailer & Hauler 5Aluminum Enclosed Motorcycle Trailer & Hauler 6Aluminum Enclosed Motorcycle Trailer & Hauler 7

Popular Options listed below. Others may be available, see Options Page for more.
Please note, not all options available on all models, call for details.

Rugged Aluminum Frame

Our aluminum trailers are built to last, starting with rugged main tubes and fully welded joints. We know what types of roads our trailers are dragged over when they leave our facility and our trailers are ready for them.

Quality Trailer Parts

A strong frame is only as good as the components to support it. This is why we use only the best of parts on our aluminum trailers like galvanized Dexter torsion axles, high quality radial tires, LED lighting, and self-adjusting brakes.

2.5x Stronger Roof

Our roofs are built with rugged 1″×2″ aluminum tubes on 16″ centers. That means a roof nearly 2.5 times stronger than many other trailers on the market. We tend to get a lot of snow in New Hampshire, our trailers are ready for it.

Attention To Detail

Every trailer we build is checked and double checked before it leaves our shop. We want to make sure our trailers are looking their best with screws lining up, lines cut straight, doors installed tight, and every trim screw properly located.
